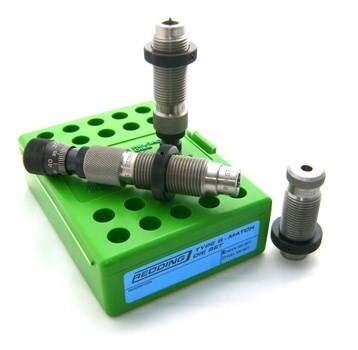

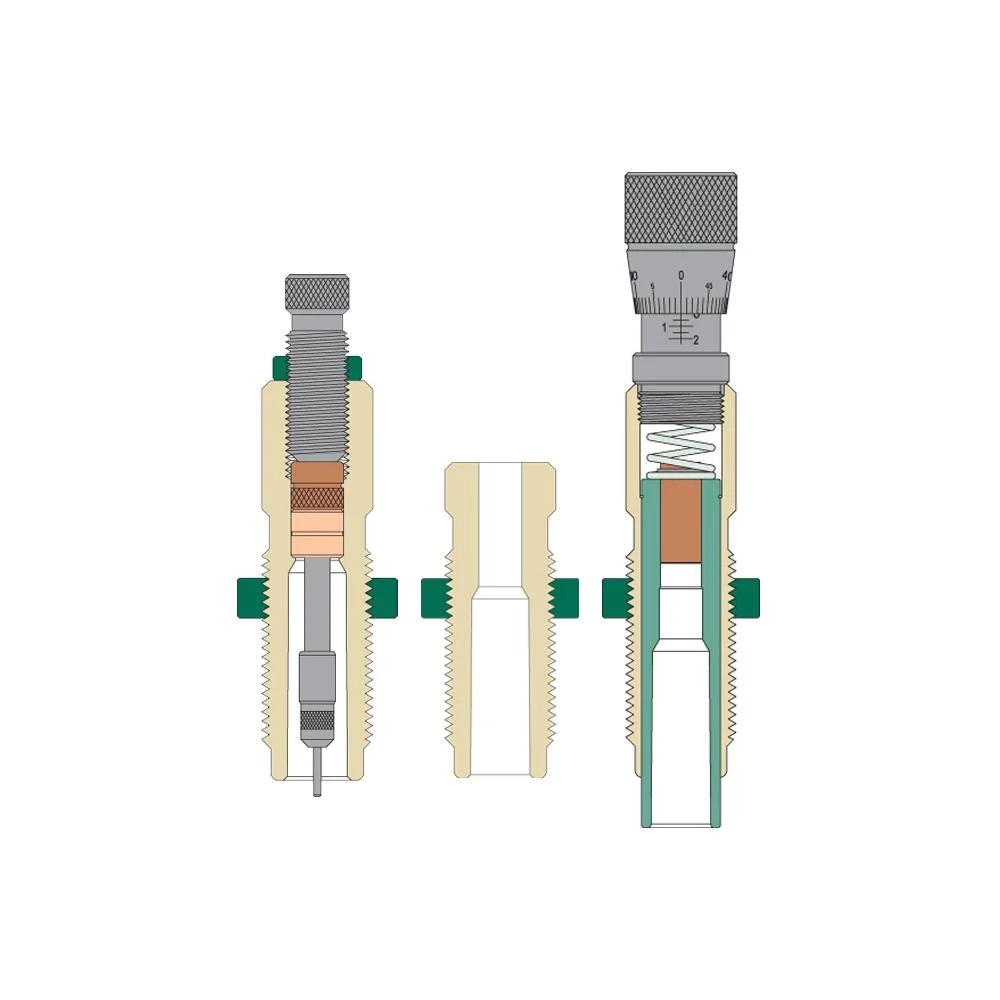

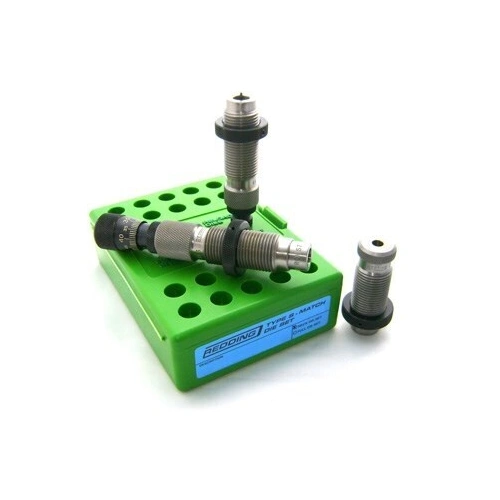

Type S Bushing Match Neck Die Set includes: - Type S Bushing Neck Die - Body Die - Competition Seating Die.
All Type-S dies use an interchangeable bushing to control neck diameter and tension to an increment of 0.001”. Bushings are available in hardened steel but also are available with a TIN (Titanium Nitride) coating for even greater lubricity. This allows the handloader complete control and precision when setting the appropriate neck tension without fear of over working the brass in the case neck. These bushings are also free-floating to self- center on the case neck for a higher degree of sizing accuracy. These features provide not only an enhanced degree of control but significant improvements to consistency and accuracy of the final loaded rounds.
ody Die - Redding has been making Body Dies for Benchrest Shooters for years. Body Dies are designed to full length resize the case body and bump the shoulder position for proper chambering without disturbing the case neck. They are made without internal parts and intended for use only to resize cases which have become increasingly difficult to chamber after repeated firing and neck sizing.
Competition Seating Die - This patented design quickly established itself as the "state of the art" in straight line bullet seaters and beat the concentricity problems inherent in all other seating dies of this type.
Tighter manufacturing tolerances were made possible due to the details of the floating seating stem system. The bullet guide to seating stem fit is so precise that the seating stem can actually be demonstrated to "float" on a column of air. The seating stem is precision ground to exactly match the bullet diameter.
Alignment and accuracy are enhanced by the cartridge case and bullet being completely supported and aligned in a close fitting, precision ground sleeve before the bullet seating begins.
The micrometer is calibrated in .001" increments for precise seating depth and is infinitely adjustable. The micrometer also has a feature that allows you to re-set it to your favorite seating depth.
All dies are supplied without bushings.
