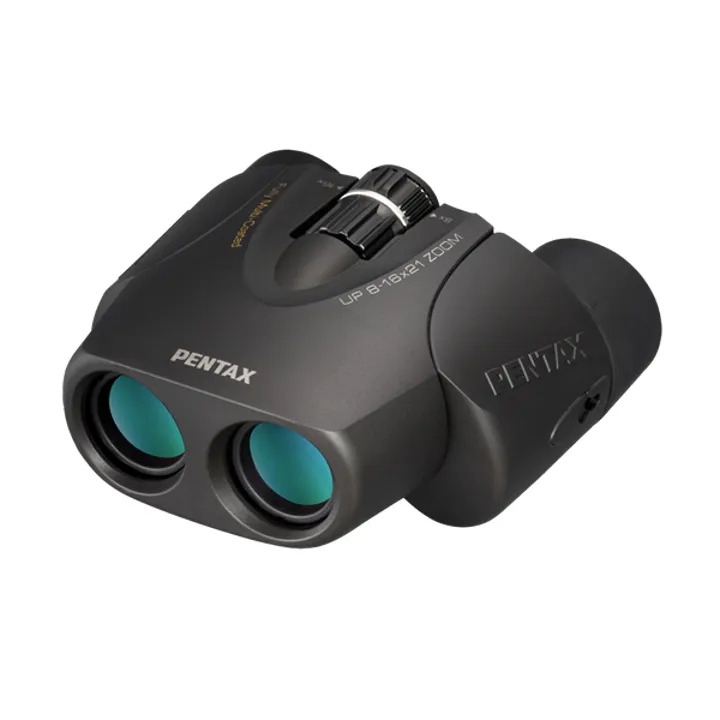

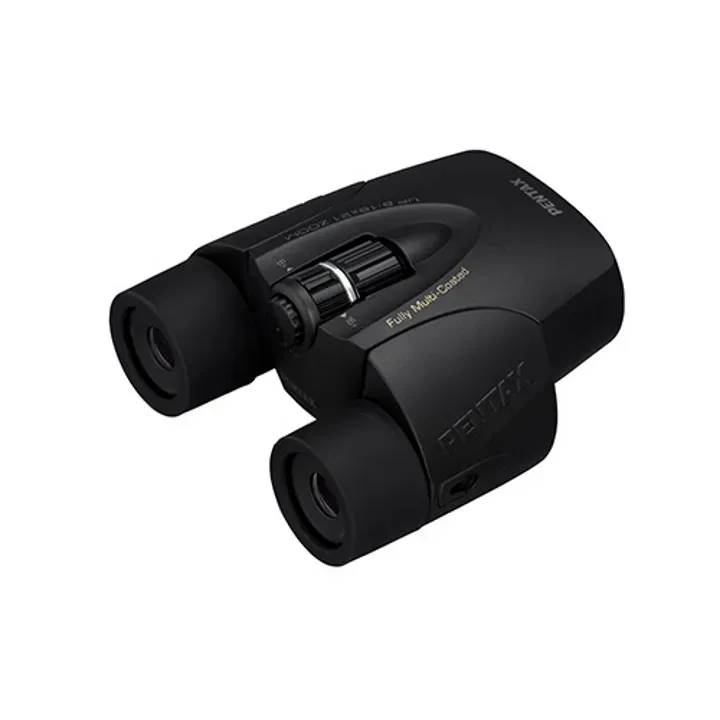

The compact and lightweight black 8-16x21 U-Series UP Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a wide angle of view. The optical elements are also fully multicoated to provide a high transmission of light. With an 8-16x range of magnification and 21mm objectives, you obtain a wide zooming range and a compact form factor. You can easily spot your targets with a 5° angular field of view at 8x magnification and quickly zoom in on them with the optical zoom. To reduce image jitter at high zoom factors or for prolonged observations, you can connect the binocular to a tripod via an integrated 1/4"-20 socket. In addition to observing distant scenes, birds and game, the minimum focus of 9.9' allows you to study in detail close objects like animal footprints, marks or landscape features. The binocular also features a 2.6-1.3mm exit pupil range, a 14-11mm eye relief range, an interpupillary and a diopter adjustments.

The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eye glasses wearers, the binocular offers sliding rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers.

Optical Performance

• Optical zoom range: 8-16x
• BAK4 Porro prisms
• Aspherical optical elements offer edge-to-edge image sharpness
• Fully multicoated optics
• Angular field of view range: 5-3°
• Interpupillary adjustment
• Diopter adjustment

Construction Details

• Single piece objectives frame allows for a synchronized interpupillary adjustment
• Contoured body provides a comfortable grip
• Center focus knob offers an easy focusing
• Sliding rubber eyecups
• 1/4"-20 tripod socket

PENTAX quality and clarity are within reach, at a price that’s within reach, too. These compact porro-prism models feature a dual-axis, single body design with synchronized eyepiece adjustment. Aspherical lens elements give you edge-to-edge sharpness. Clear images and clearly affordable.

• Fully-multi-coated optics assure maximum light transmission resulting in high quality viewing. Every surface of every element is fully coated minimizing internal glare and flare and giving a bright clear view.
• Unique Uni-body design enhances durability by locking objective lenses in a single housing and synchronizing the eyepiece movement. This minimizes moving parts and assures these binoculars will function properly and clearly for years to come.
• Aspherical lens elements, which are critical in compact binoculars, provide exceptional edge-to-edge sharpness. This assures that items on the edge of your field of view are just as sharp as those in the center.
