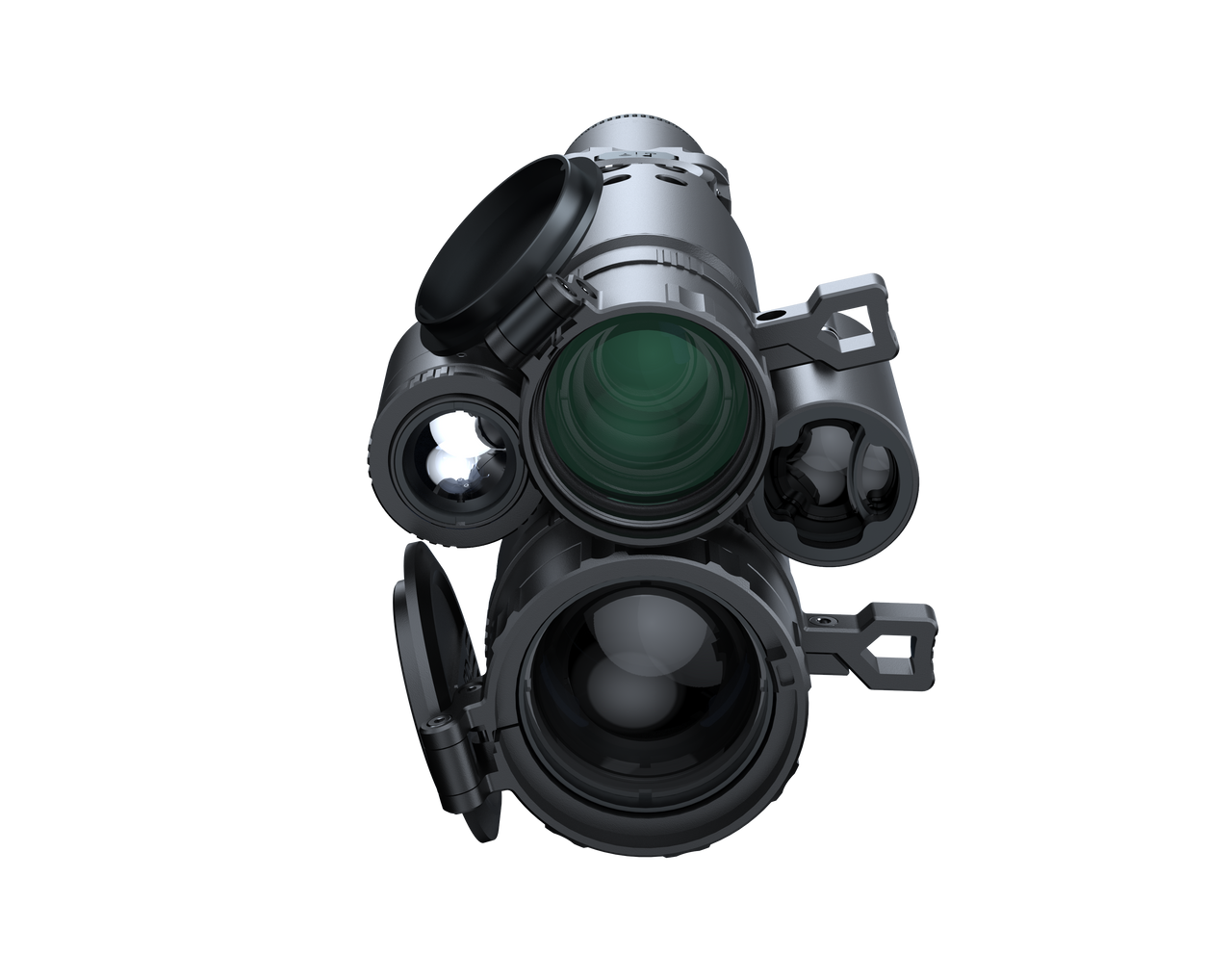

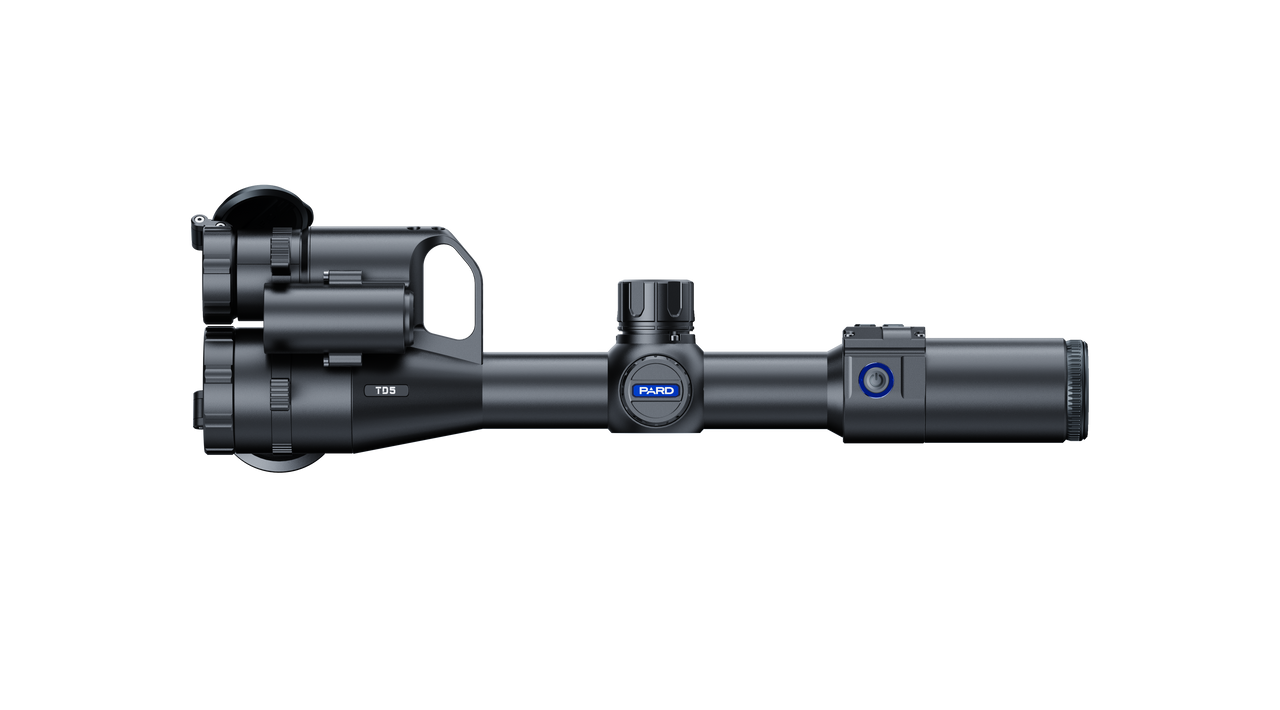

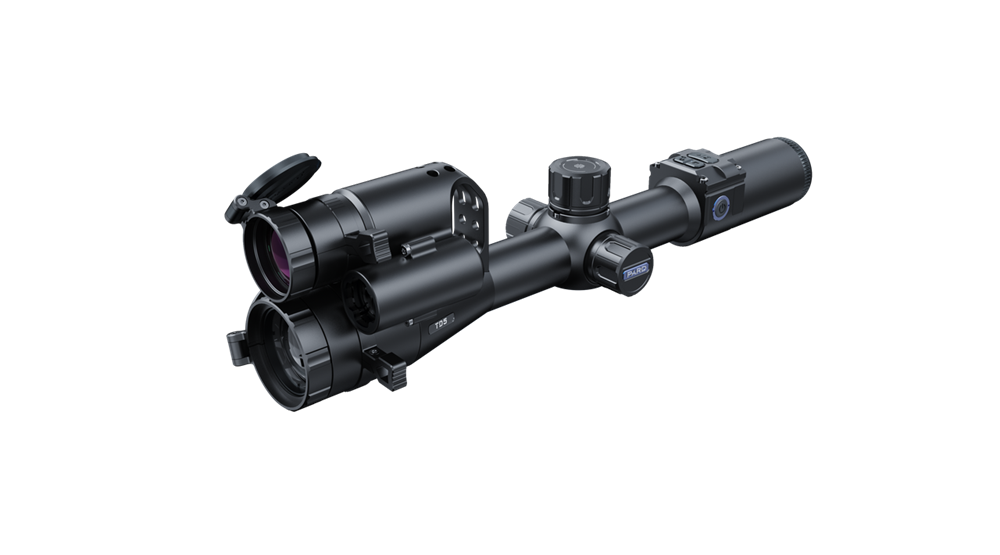

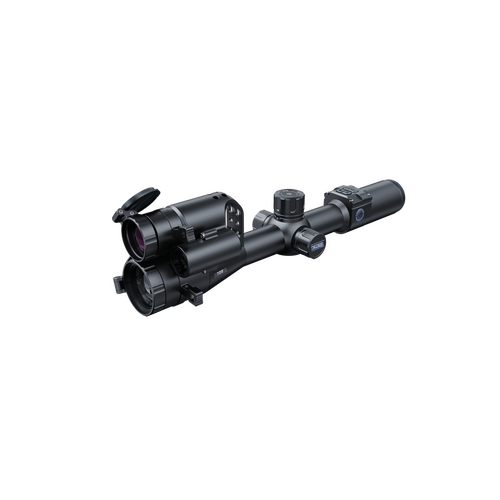

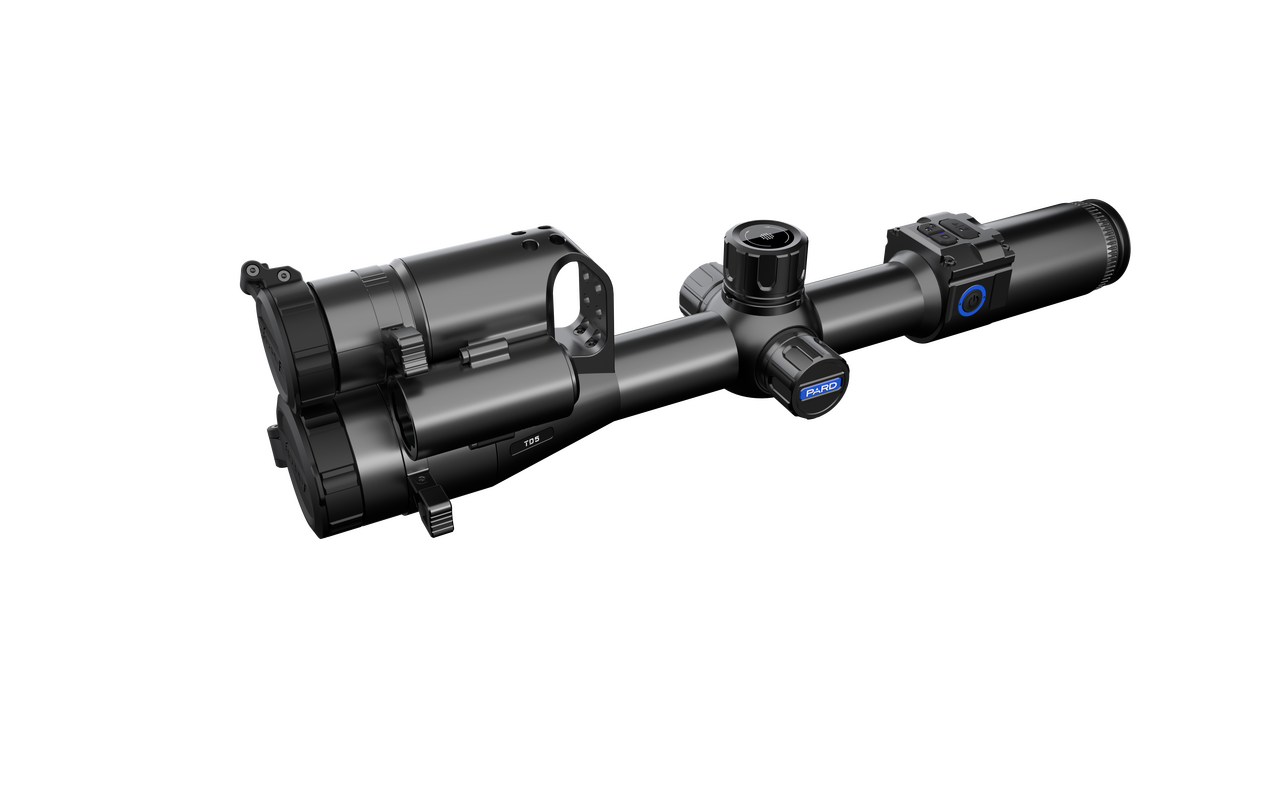

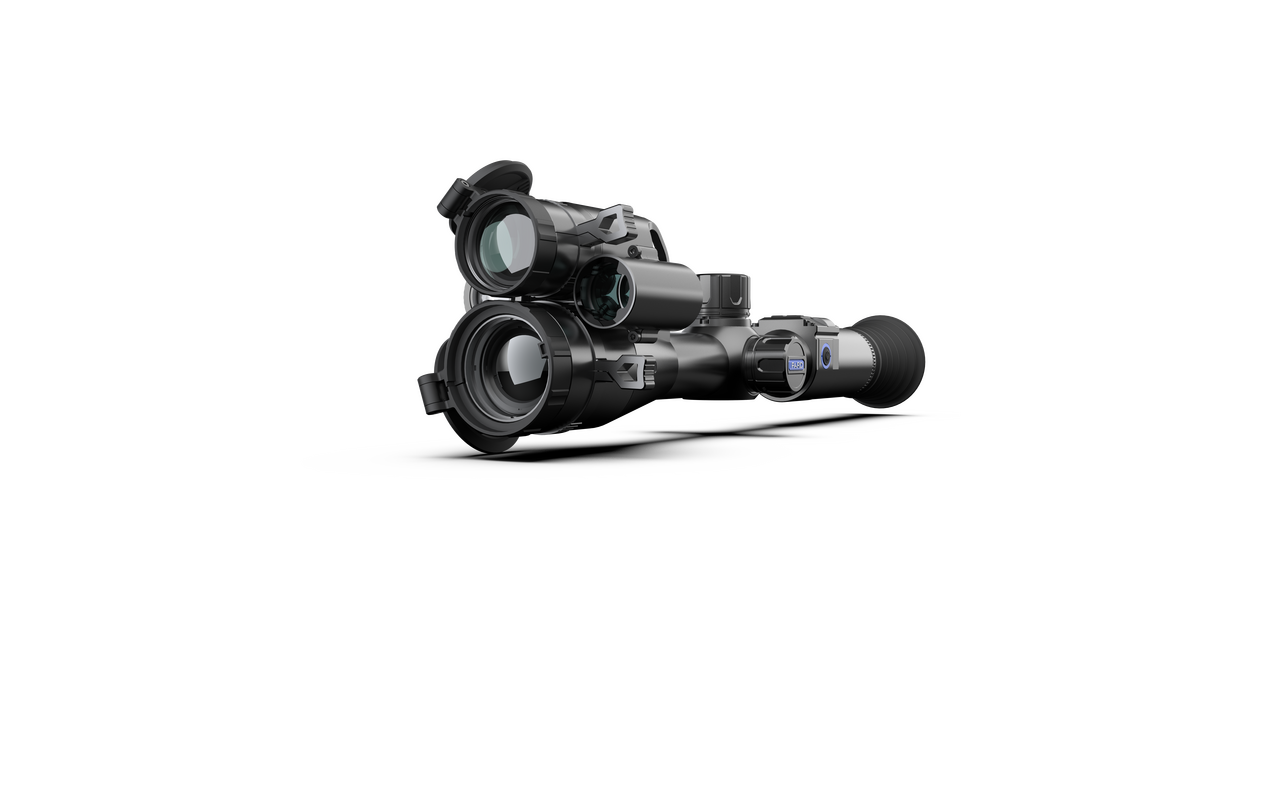

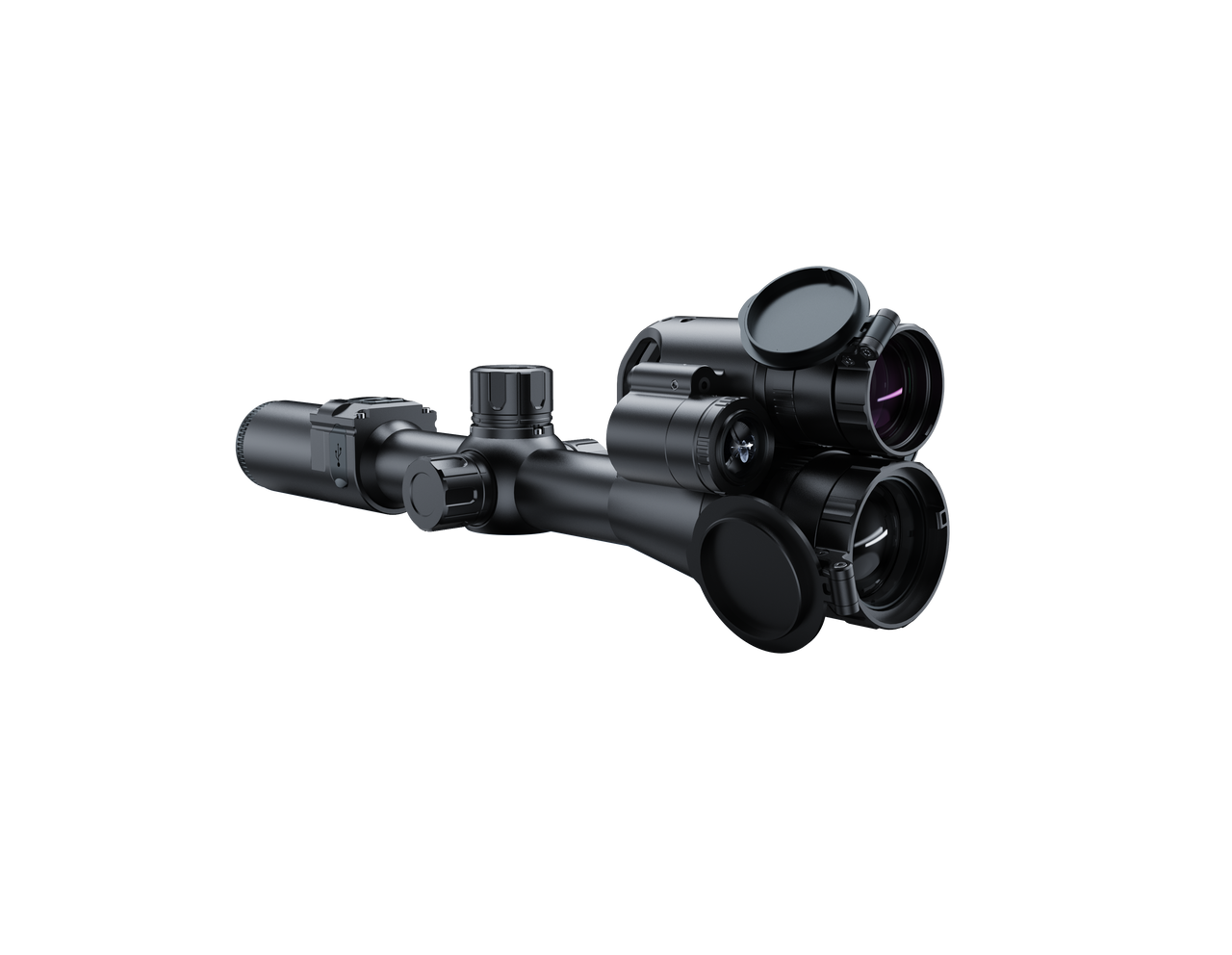

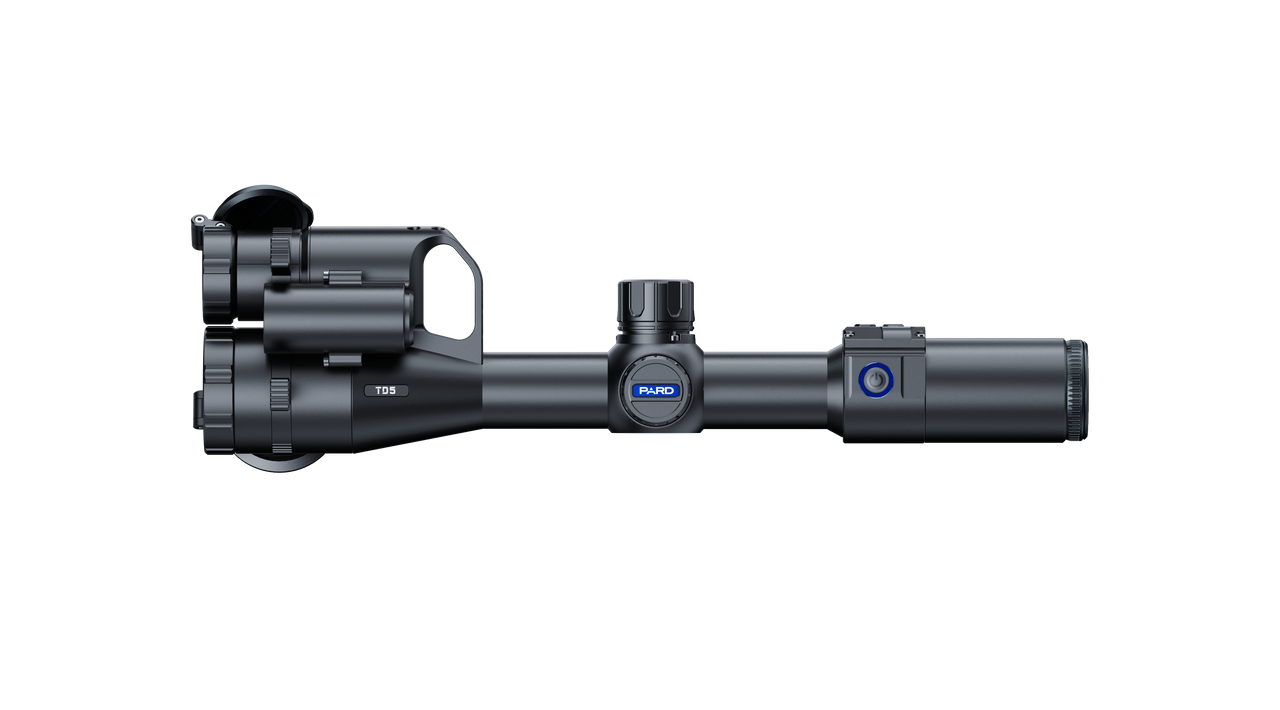

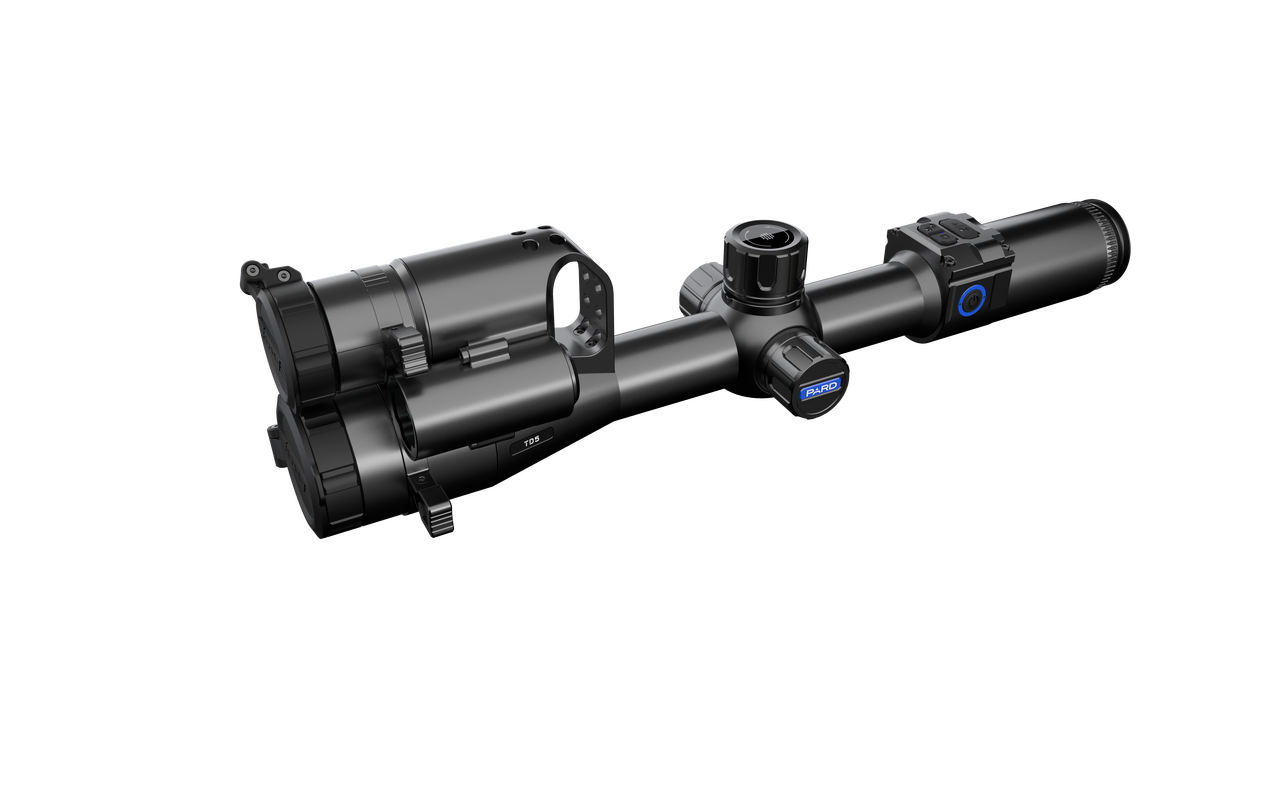

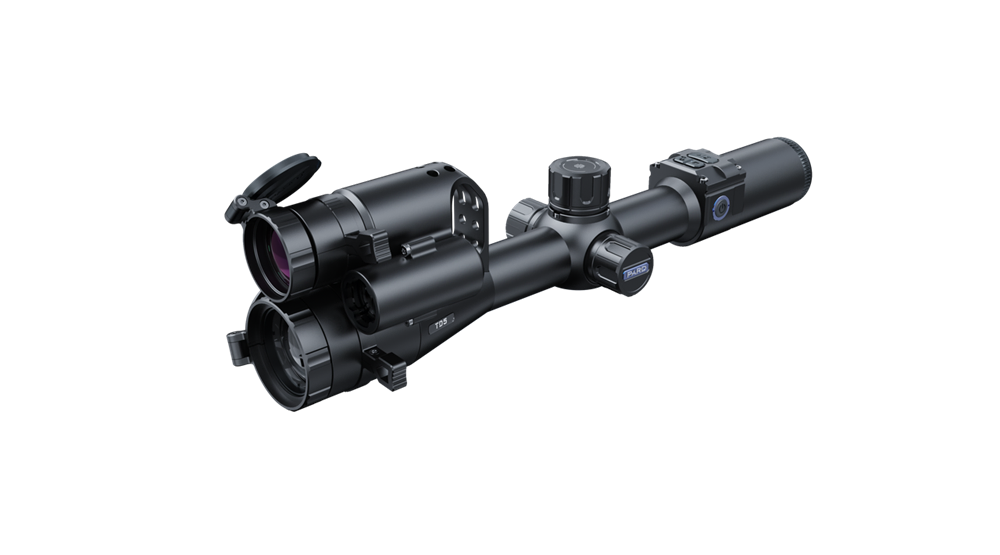

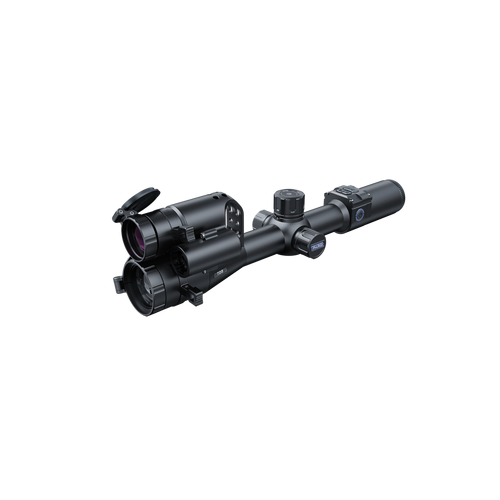

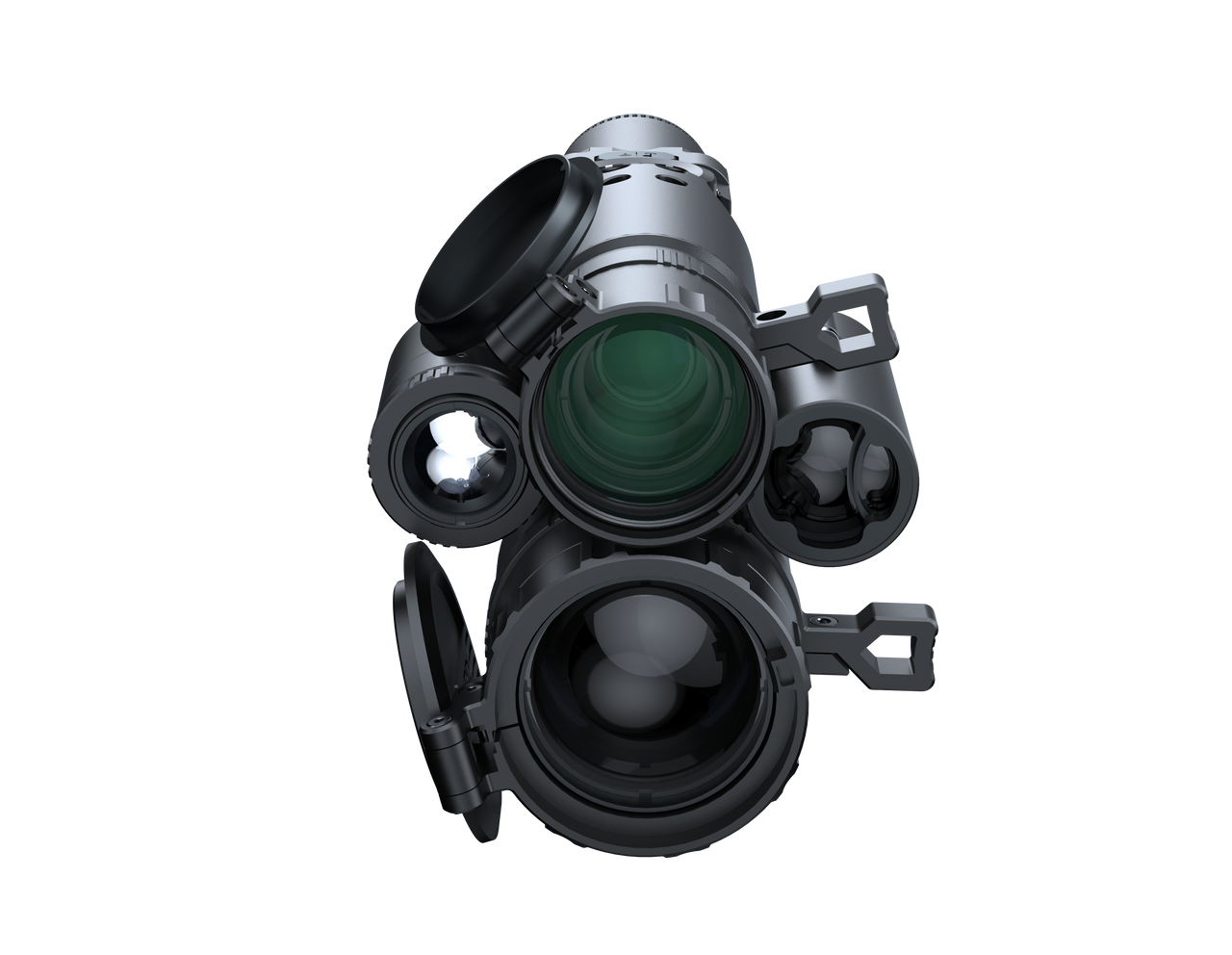

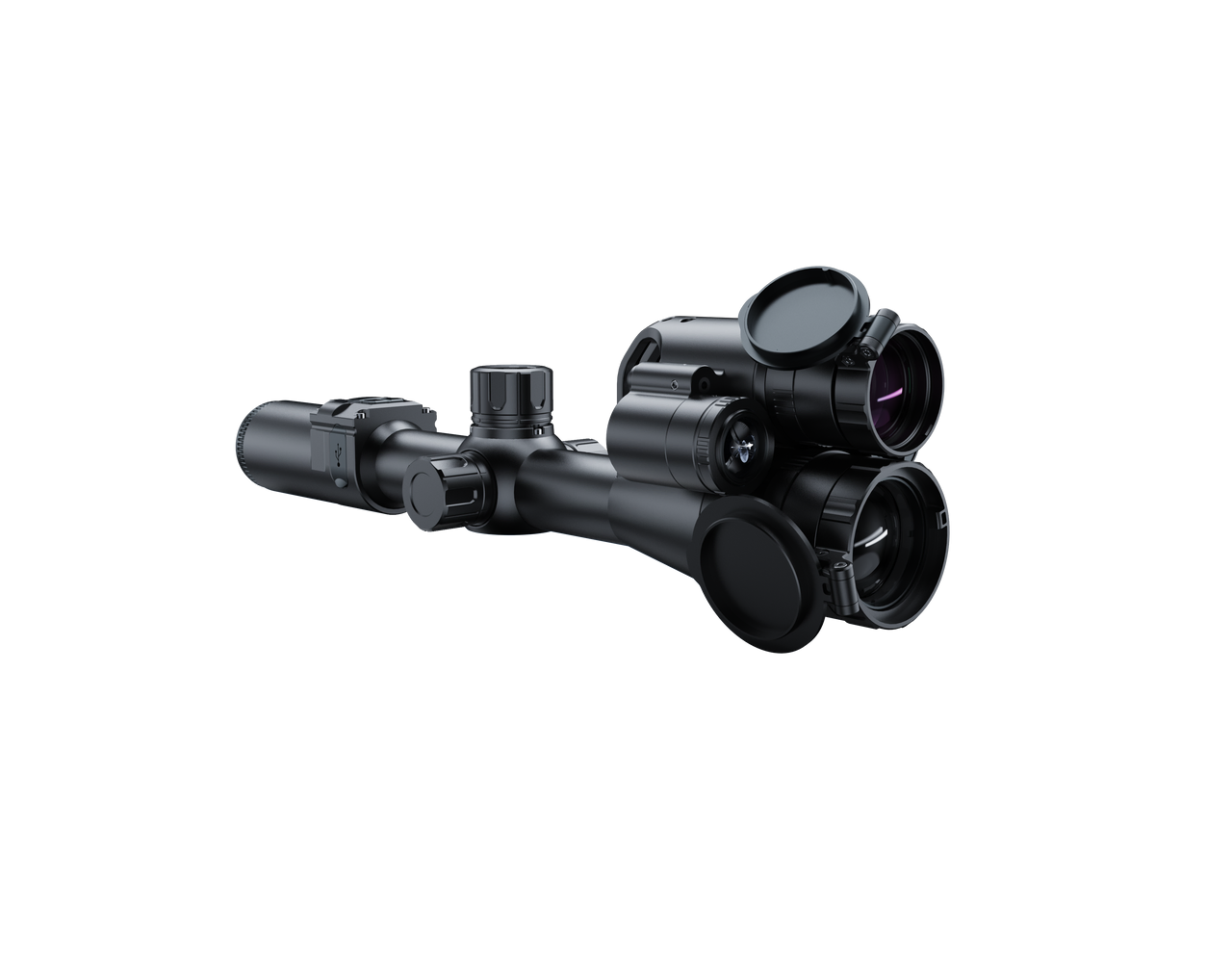

PARD TD32 70mm 850nm Multispectral Night Vision & Thermal Riflescope
Multispectral Night Vision & Thermal Riflescope
Stock Location | |
---|---|
NSW Warehouse | 0 |
QLD Warehouse | 0 |
SA Showroom | 0 |
Introducing the TD32 Multispectral Night Vision & Thermal Riflescope, the ultimate companion for avid hunters seeking unmatched precision and versatility.
Introducing the TD32 Multispectral Night Vision & Thermal Riflescope, the ultimate companion for avid hunters seeking unmatched precision and versatility. This cutting-edge device combines advanced multi-spectrum technology with a dual-sensor system, revolutionizing your hunting experience in any condition.
• TD32 multi-spectrum technology provides a versatile hunting experience in various conditions for day and night.
• Equipped with four observation channels, the TD32-70 caters to every hunting scenario you may encounter.
• The thermal imaging observation channel delivers exceptional clarity for long-distance searching and aiming, whether it's day or night.
• For daytime hunting, the night vision channel in full-color mode presents high-definition images that enhance your target acquisition.
Designed to withstand harsh conditions, the TD32-70 excels in rainstorms, fog, and snow, providing reliable performance when you need it most. Its high-sensitivity thermal imaging detector boasts a resolution of 384x288, 12μm pixel pitch, and NETD≤25mK, complemented by a high-performance CMOS sensor and multi-channel display. This combination delivers a versatile and immersive hunting experience that sets it apart from the competition.
TD32 multi-spectrum technology provides a versatile hunting experience in various conditions for day and night.
Equipped with four observation channels, the TD32-70 caters to every hunting scenario you may encounter. The thermal imaging observation channel delivers exceptional clarity for long-distance searching and aiming, whether it's day or night. For daytime hunting, the night vision channel in full-color mode presents high-definition images that enhance your target acquisition.
When darkness falls, the night vision channel switches to black and white mode, allowing you to navigate and observe with exceptional clarity even in the darkest environments. The innovative Picture-in-Picture (PIP) mode enables seamless switching between thermal imaging and night vision displays on the same screen, ensuring precise shots while maintaining a clear view.
Designed to withstand harsh conditions, the TD32-70 excels in rainstorms, fog, and snow, providing reliable performance when you need it most. Its high-sensitivity thermal imaging detector boasts a resolution of 384x288, 12μm pixel pitch, and NETD≤25mK, complemented by a high-performance CMOS sensor and multi-channel display. This combination delivers a versatile and immersive hunting experience that sets it apart from the competition.
Model | TD32-70 |
IR Sensor | |
Type | Uncooled Vox IR Sensor |
Resolution(pixel) | 384*288 |
Pixel Size(μm) | 12*12 |
NETD(mK) | ≤25mK(0.025°C) |
Frame Rate(Hz) | 50 |
Human Detection Distance(m) | 1400 |
Vehicle Detection Distance(m) | 2600 |
Image Engine | PARD IREA |
Objective Lens(mm) | 35 |
Optical Magnification(x) | 3 |
Digital Zoom(x) | 2 |
Field of View (HxV) | |
Horizontal | 5.7° |
Vertical | 5.7° |
Diagonal | 8° |
Focus Range | 3m |
Visible Light Sensor | |
Type | CMOS Sensor |
Resolution(pixel) | 1920*1080 |
Pixel Size(μm) | 2.9 |
Sensitivity(lux) | 0.001 |
Frame Rate(fps) | 30 |
Objective Lens(mm) | 70 |
Optical Magnification(x) | 6.5 |
Digital Zoom(x) | 2 |
Continuous Digital Zoom | 6.5-13 |
Field of View (HxV) | |
Horizontal | 2.6° |
Vertical | 2.6° |
Diagonal | 3.6° |
Image Engine | PARD VLEA |
Focus Range | 3m |
Display | |
Type | IPS LCD |
Resolution(pixel) | 800*800 |
Reticle Style | 6 |
Reticle Color | 4(Red/White/Yellow/Green) |
Scene Mode | City/Rain/Forest |
Image Mode | WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY |
Eye Relief(mm) | 100 |
Diopter Adjustment(D) | -5D~+3D |
Photo / Video | |
Photo Resolution(pixel) | 2592*1944 |
Photo Format | .JPG |
Video Resolution(pixel) | Thermal: 1024*768/Night Vision: 1440*1080 |
Video Format | .mp4 |
Storage(GB) | TF card(128GB,Max) |
Main Function | |
LRF Detection Range(yd) | 1200 |
Ballistic Calculator | Yes |
PIP | Yes |
Gyroscope | Yes |
Self-Activated Recording | Yes |
Loop Recording | Yes |
Red Dot | Yes |
E-compass | Yes |
Shutter | Mechanical shutter |
Microphone | Yes |
Firmware Upgrade | Yes |
IR Illuminator | |
IR Type | VCSEL |
IR Power | 5W |
IR Illuminating Level | 3 Levels |
IR Distance(m) | 350 |
IR Wavelength(nm) | 850/940 |
Interfaces | |
USB Tpye-C | Yes |
HDMI Output | Yes |
Power Supply | |
Battery Type | Lithium Ion 21700*1 |
Output Voltage(V) | 3.7 |
Operating Time(h) | ≤6 |
External Power Supply | Type-C |
Environmental Characteristic | |
Protection Rating | IP67 |
Operating Temp(°C) | -20~50 |
Recoil Resistance(J) | 6000 |
Material | |
Housing | Aluminum Alloy |
Objective lens | All-glass multi-coated lens |
Measurement | |
Product dimension(L x W x H, mm) | 350*91*95 |
N.W/pcs(with/without battery, g) | 800g(w/o battery) 845g(w/ battery) |
SKU | PARTD32-70-850 |
Brand | Pard |
Objective Lens Diameter | 35mm |
Eye Relief | 100mm |
Angular Field of View | 5.7 x 5.7° |
Sensor Size | 384px |
Pixel Pitch | 12 μm |
NETD | <25 mK |
Maximum Detection Range | 1400m |
Optical Magnification | 3x |
Battery | 21700 |
Weight | 845 grams |
