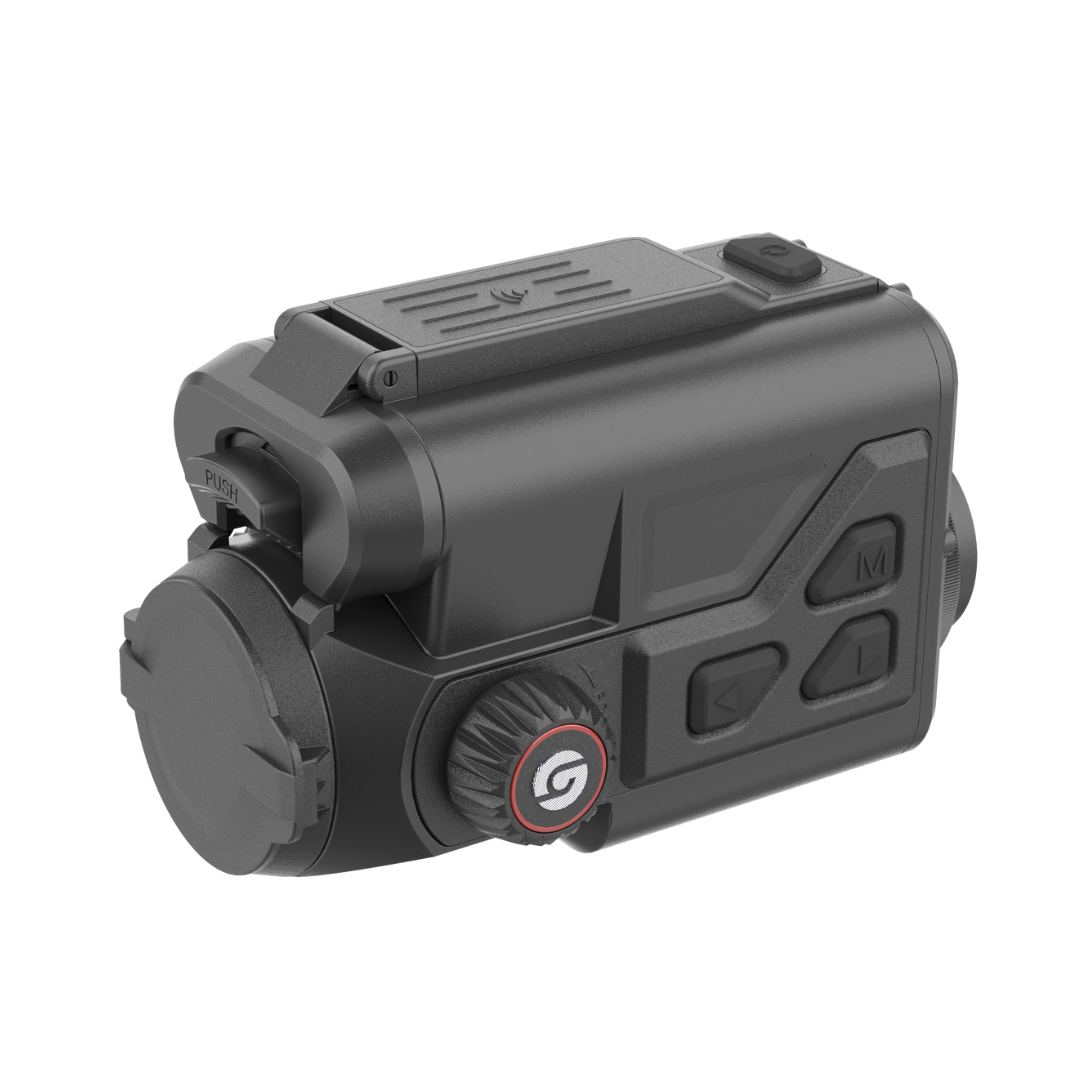

Guide TB630 Thermal Clip On
Thermal Clip-On
The TB Series bridges the gap between precision and portability.
The TB Series bridges the gap between precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relaxed hunting.

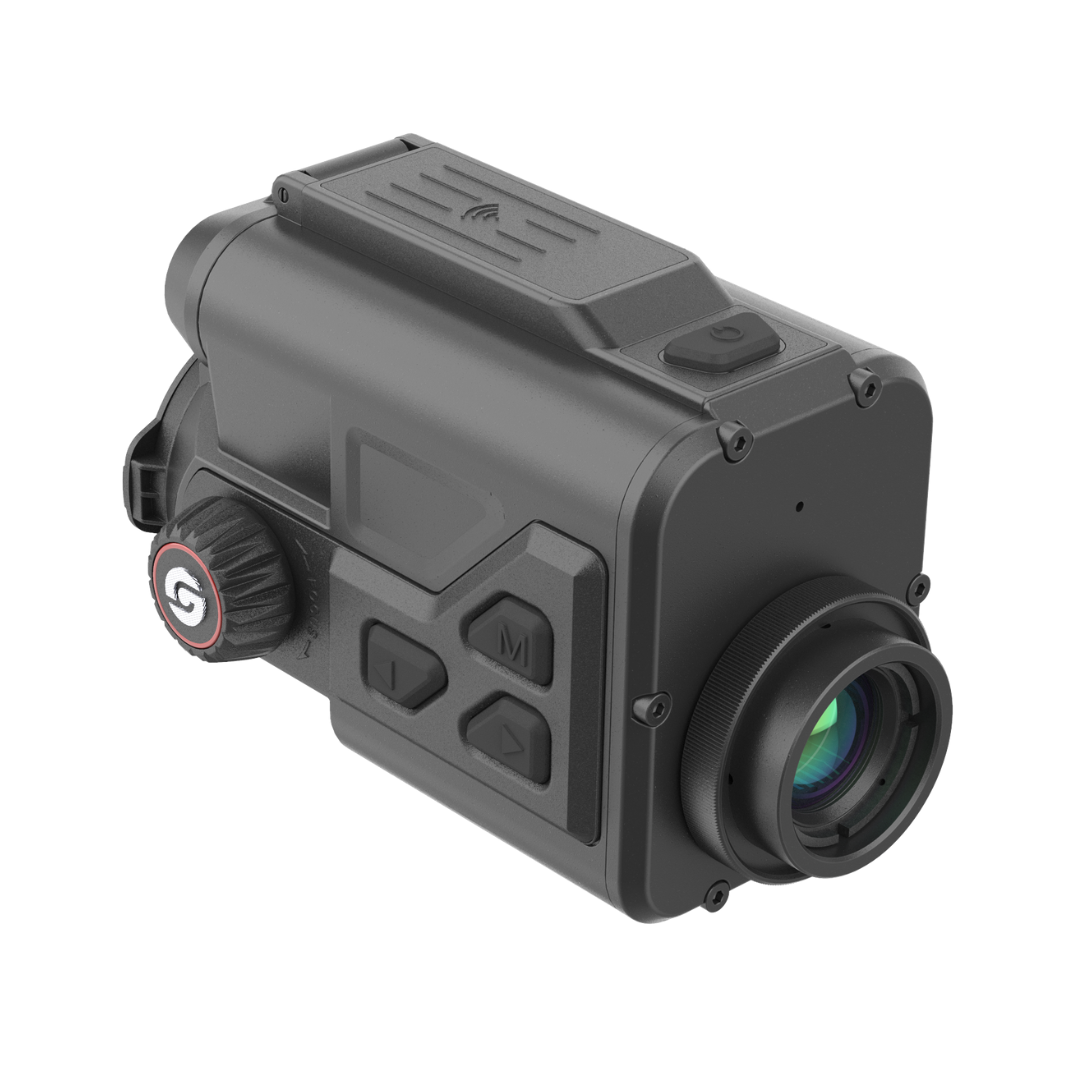

Guide TB630 Thermal Rifle Scope
-
12μm advanced thermal detector, NETD<25mK
-
Full-HD 1920x1080 AMOLED display
-
Magnesium alloy housing, compact design, light weight but powerful
-
Two Standard 18650 batteries provides up to 12 hours of operation
-

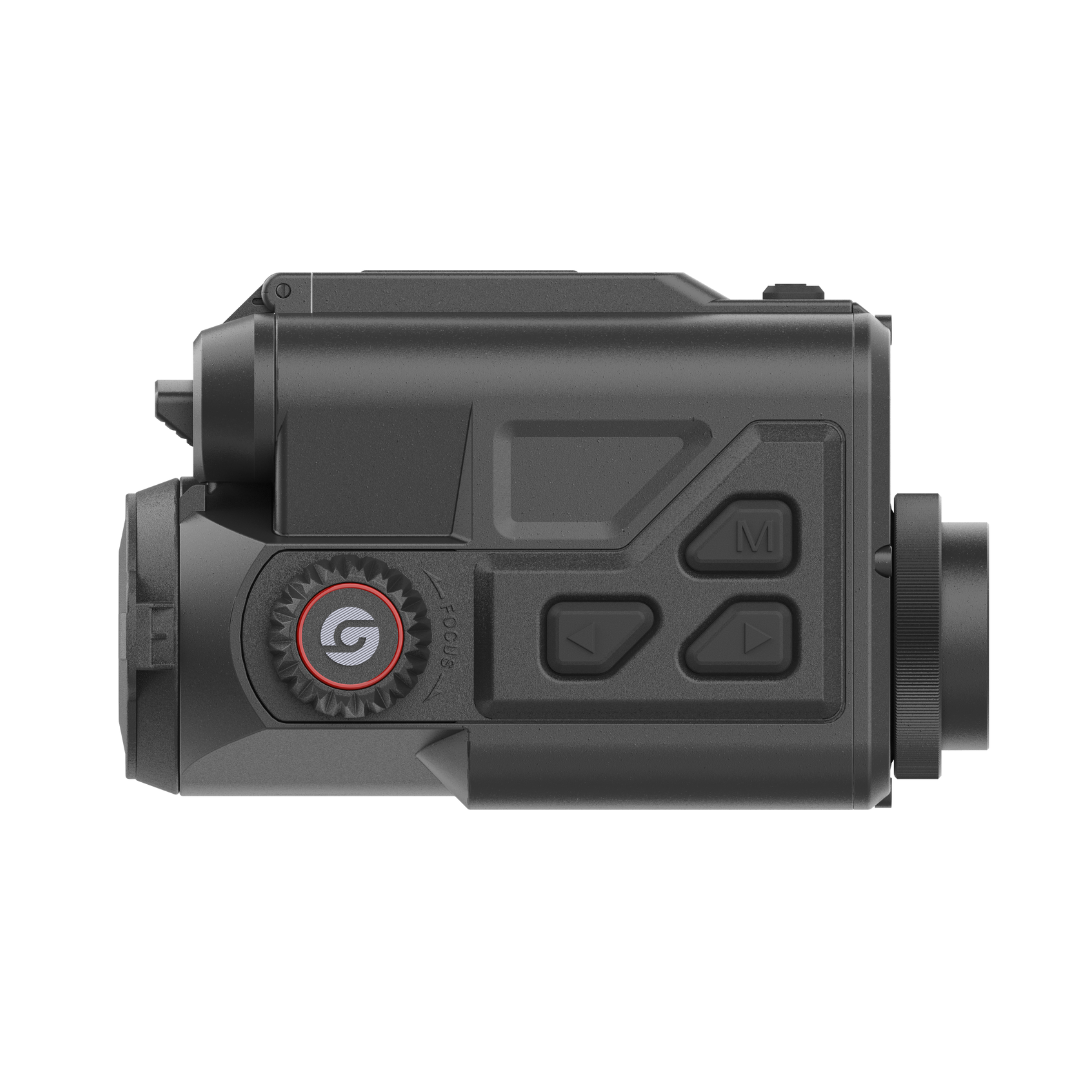

Double Side focus knob for easy operation
-
Video recording including sound
-
IP68, Shock resistance up to 1000G/ms

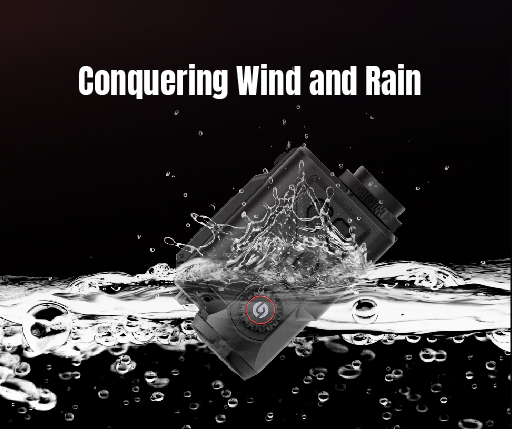

IP68 Conquering Wind and Rain
Superior waterproof performance ensures reliable operation in the harshest conditions. Shock resistance up to 1000G/ms.

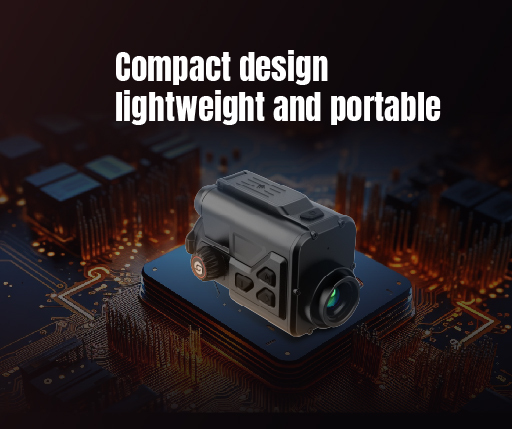

Compact design lightweight and portable
Magnesium alloy housing, compact design, light weight but powerful
Full-HD 1920x1080 AMOLED display
The eyepiece features a 1920x1080 high-definition AMOLED screen allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
12μm advanced thermal detector, NETD<25mK
By utilizing a highly sensitive IR detector with a NETD<25mK, even the slightest temperature differences can be distin-guished, resulting in sharper and clearer imaging.

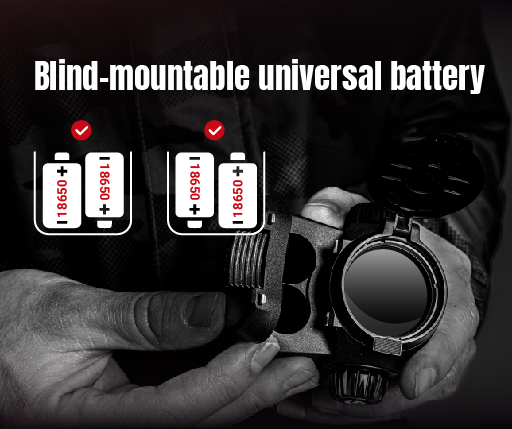

Blind-mountable universal battery
Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.

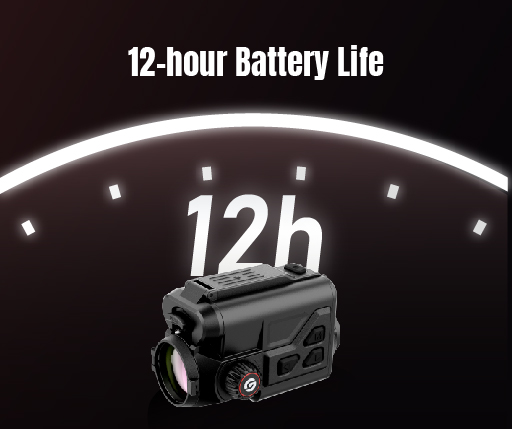

12-hour Battery Life
Experiencing wild adventures with power energy consumption, lightweight design, and enduring performance.
SKU | GUITB630 |
Model # | TB630 |
Brand | Guide IR |
Objective Lens Diameter | 35mm |
Field of View | 22x16m @ 100m |
Angular Field of View | 12.5°×9.4° |
Sensor Size | 640px |
Pixel Pitch | 12 μm |
NETD | <20 mK |
Maximum Detection Range | 1800m |
Display Size | 1920x1080 |
Optical Magnification | 1x |
battery | 18650 |
Length | 128mm |
Weight | 440 grams |
