Forster Datum Dial Kit
DDKIT
Stock Location | |
---|---|
SA Showroom | 5 |
Easy-to-use ammo measurement system gives you the data you need to refine your case sizing operations. This complete kit includes one Datum Dial tool and both bullet/Cartridge dials for 17, 204, 224, 243, 257, 264, 277, 284, 308, and 338 bullets.
Easy-to-use ammo measurement system gives you the data you need to refine your case sizing operations.(A caliper is required.)
Provides a relative measurement between the base of a case to a datum point on its shoulder angle. May be used:
- Before sizing operations to find the optimal headspace for your firearm
- After sizing operations to check the setup and consistency of your reloading process
Features
- Easily interchangeable dials: case and bullet/cartridge dials provide quick measurement of different calibers
- Consists of only four components: provides the same caliber coverage as other products with many more components
- Covers multiple calibers: competing products can require the purchase of a separate kit for each caliber needed
- Measurement is exact variation: no need to subtract body plus bushing/insert length from each measurement
- Durable plastic storage box: room for extra setup, keeps all components together and protected
APERTURE/DATUM DIA. | CASE CALIBER |
---|---|
.330″ |
17 Rem; 204 Ruger; 22 Nosler; 220 Swift; 221 Fireball; 222 Rem; 222 Rem Mag; 223 Rem; 6mm x 45 |
.350″ |
22 BR; 22 PPC; 22-250; 225 Win; 6mm BR; 6mm Dasher; 6mm PPC; 6mm PPC/Wild; 250 Sav; 6.5 Grendel; 300 AAC Blackout |
.375″ |
6mm GT; 6mm Rem (244); 6mm XC; 25-06 Rem; 257 Roberts; 6 x 47 Lapua; 6.5 x 47 Lapua; 6.5 x 57 Mauser; 6.5 x 55; 270 Win; 7 x 57 Mauser; 280 Rem (7mm Exp); 30-06 Springfield; 30-30 Win; 300 H&H Mag; 303 British; 30-40 Krag; 32 Win Spec |
.400″ |
243 Win; 260 Rem; 6 / 6.5 Creedmoor; 270 WSM; 7mm-08 Rem; 308 Win;308 National Match |
.420″ |
264 Win; 26 Nosler; 6.5-284; 6.5 PRC; 7mm Rem Mag; 7mm RUM; 7mm STW; 7mm WSM; 28 Nosler; 284 Win; 30-338 Win Mag; 300 Norma; 300 PRC; 300 Ultra Mag; 300 Win Mag; 300 WSM; 8mm Rem Mag; 338 Win Mag; 375 H&H |

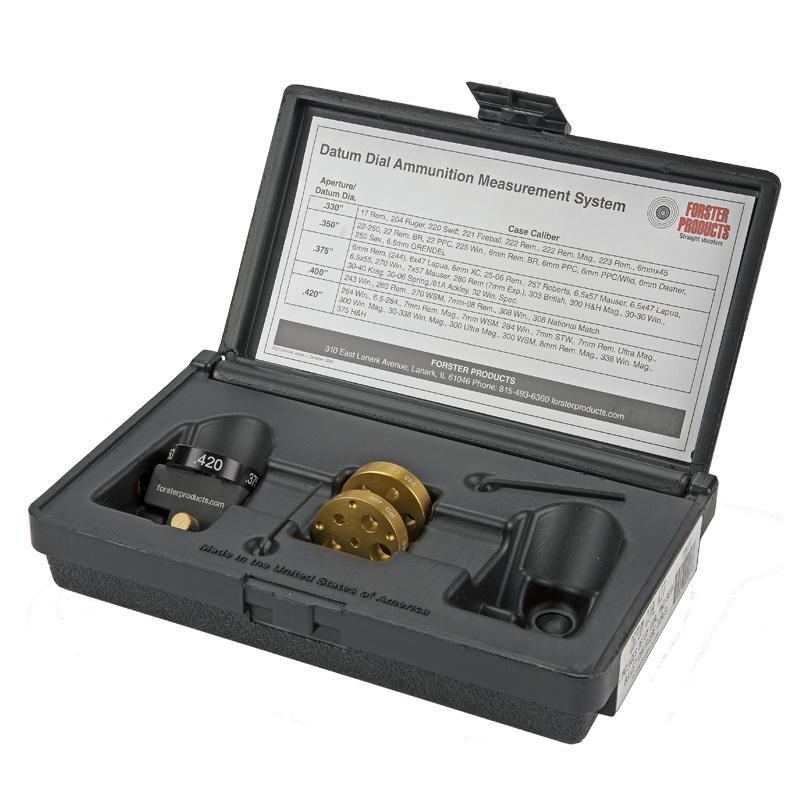

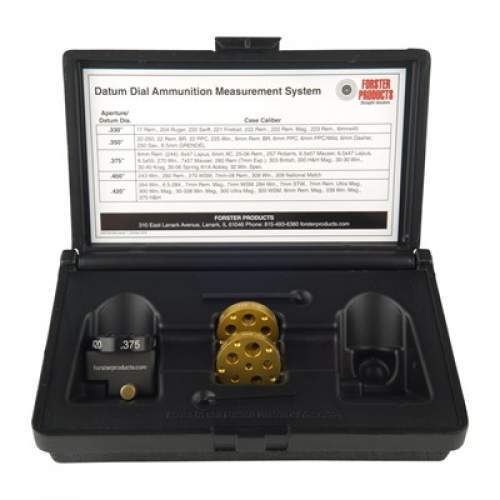

Included in the Box:
- Datum Dial tool for checking cartridge cases
- Chart showing common datum diameters
- Instructions
- Storage box
- Cartridge Dial #1
- Cartridge Dial #2
SKU | FORDDKIT |
Model # | DDKIT |
Brand | Forster |
