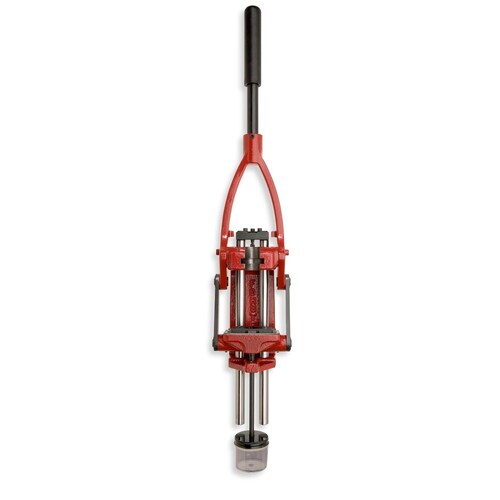

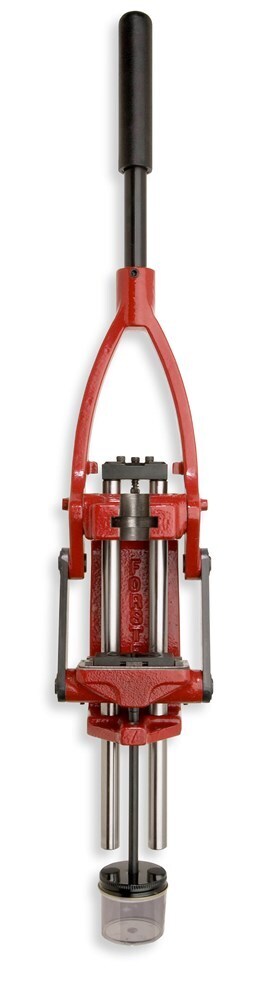

Co-Ax Press, supplied with “S” jaws. No need to complicate the reloading process. Our Co-Ax Press keeps it simple while still delivering famous Forster precision. The Forster Co-Ax Loading Press comes with several unique features that help make it truly one of a kind, including:

• Snap-in and snap-out die changing. You can actually change from sizer die to seater die in two seconds!
• A positive spent primer catcher system which passes all spent primers and dirty carbon through a tube and into a container. That helps keep all working parts free of dirt and abrasives.
• Dual floating guide rods to help ensure perfect alignment.
• Because there is absolutely no torque on the head of the Co-Ax Press, long life is the rule rather than the exception. Due to the design of the linkage and pivots, all forces are in equilibrium whether the press is at maximum work load or at rest.
• Our Co-Ax Press has three times the mechanical advantage of an ordinary “C” press. It’s so effortless, full length sizing can actually be accomplished by operating the handle of the press with the little finger! There’s no pain but plenty of gain.
• The Co-Ax Press delivers perfect alignment of the die and the case because the shell holder jaws are designed to float with the die, thereby permitting the case to center precisely in the die.
• With no frame supports or swinging primer arms to interfere or cause an obstruction, the Co-Ax Press provides plenty of elbow room for both right handed or left handed operators.
• The Co-Ax Press accepts any standard ⅞″ X 14 reloading die, some with existing locking rings. We recommend Forster Cross Bolt Locking Rings.
• The unique top priming device seats primers to factory specifications. The seater is always at right angles to the case head. Primers will not flip or tip. They will be seated straight, level and at a uniform distance below the case head. Primers cannot be crushed, nor will they protrude from the case head and cause premature firing.
• The top of the stroke provides a rock solid stop for consistency.


  Case Compatibility:
  Shell Holder Jaw Reference for Popular* Rifle Calibers

  Caliber	Shell Holder Jaws	End to Use
  221 Remington	S	Small
  22 Savage	S or LS	Large
  220 Swift	S	Large
  225 Winchester	S	Large
  240 Weatherby Magnum	S	Large
  243 Winchester	S	Large
  6mm PPC (US Version)	S	Large
  25-06 Remington	S	Large
  257 Weatherby Magnum	S	Large
  264 Winchester Magnum	S	Large
  6.5×54 Mannlicher-Schoenauer	S	Large
  6.5 Remington Magnum	S	Large
  6.5 Swedish-not listed	S	Large
  7×64 Brenneke	S	Large
  7mm x 08 Remington	S	Large
  7 x 57 Mauser	S	Large
  7mm Bench Rest Remington	S	Large
  7mm Remington Magnum	S	Large
  7mm Weatherby Magnum	S	Large
  284 Winchester	S	Large
  30-30 Winchester	S or LS	Large
  30-40 Krag	S or LS	Large
  307 Winchester	S or LS	Large
  308 National Match	S	Large
  308 Norma Magnum	S	Large
  Caliber	Shell Holder Jaws	End to Use
  30-06 Springfield	S	Large
  300 Remington Ultra Magnum	S	Large
  8mm Remington Magnum	S	Large
  8 x 57 (8mm Mauser)	S	Large
  8 x 68 S	S	Large
  32 Winchester Self-Loading	S	Small
  32 Winchester Special	S	Large
  338 Winchester Magnum	S	Large
  35 Remington	S	Large
  356 Winchester	S or LS	Large
  375 Weatherby Magnum	S	Large
  38-55 Winchester	S or LS	Large
  416 Remington Magnum	S	Large
  375 Winchester	S or LS	Large
  22 Remington Jet Magnum	S	Large
  38 Special	S	Large
  9mm Winchester	S	Small
  351 Winchester Self-Loading	S	Small
  45 Winchester Magnum	S	Large
  45 Automatic (.45 ACP)	S	Large
  45 Auto Rim	***	*SPECIAL*
  256 Winchester Magnum	S	Large
  17 Remington	S	Small
  222 Remington	S	Small
  222 Remington Magnum	S	Small
  Caliber	Shell Holder Jaws	End to Use
  223 Remington	S	Small
  224 Weatherby Magnum	S	Large
  5.6 x 50 Magnum	S	Small
  221 Remington Fireball	S	Small
  30 Lugar	S	Small
  30 Carbine	S	Small
  32 Smith & Wesson	S	Small
  32 Smith & Wesson Long (32 Colt New Police)	S	Small
  32 Short Colt	S	Small
  32 Long Colt	S	Small
  32 Automatic (.32 ACP)	S	Small
  357 Magnum (357 S & W Magnum)	S	Large
  9mm Lugar (9mm Parabellum)	S	Small
  380 Automatic (380 ACP, 9mm Kurz, 9mm Corto, 9mm Short)	S	Small
  38 Automatic (.38 ACP)	S	Small
  38 Super Automatic	S	Small
  38 Smith & Wesson (38 Colt New Police)	S	Large
  38 Short Colt	S	Large
  38 Long Colt	S	Large
  219 Zipper	S or LS	Large
  5.6 x 50 Rimmed Magnum	S	Large
  22-250 Remington (.22 Varminter)	S	Large
  6mm Remington	S	Large
  6.5 Carcano	S	Large
  270 Weatherby Magnum	S	Large
  Caliber	Shell Holder Jaws	End to Use
  280 Remington (7mm Express, 7mm-06 Remington)	S	Large
  7 x 57 Mauser (7mm Mauser)	S	Large
  7 x 61 Super Norma (7×61 Sharpe & Hart)	S or LS	Large
  7.5 x 55 Schmidt-Rubin (7.5×55)	S or LS	Large
  30 Remington	S	Small
  25-35 Winchester	S or LS	Large
  250 Savage	S	Large
  257 Roberts	S	Large
  6.5 x 55 Mauser	S	Large
  30-06 Springfield	S	Large
  300 Savage	S	Large
  300 H & H Magnum	S	Large
  300 Winchester Magnum	S	Large
  303 Savage	S or LS	Large
  303 British	S or LS	Large
  308 Winchester	S	Large
  300 Weatherby Magnum	S	Large
  8 x 57 JS Mauser	S	Large
  8 x 57 Mauser (8mm Mauser)	S	Large
  32 Remington	S	Small
  32-40 Winchester	S or LS	Large
  38 Long Colt	S	Large
  41 Remington Magnum	S	Large
  44 Remington Magnum	S	Large
  Caliber	Shell Holder Jaws	End to Use
  44 Smith & Wesson Special	S	Large
  45 Colt	S	Large
  10mm Automatic	S	Large
  340 Weatherby Magnum	S	Large
  350 Remington Magnum	S	Large
  358 Norma Magnum	S	Large
  375 H & H Magnum	S	Large
  444 Marlin	S or LS	Large
  44-40 Winchester (.44 WCF)	S or LS	Large
  458 Winchester Magnum	S	Large
  300 RUM	S	Large
  300Sh RUM	S	Large
  270 WSM	S	Large
  7mm WSM	S	Large
  7mm RUM	S	Large
  7mmSh RUM	S	Large
  300 WSM	S	Large
  375 RUM	S	Large
  38-40 Winchester (.38 WCF)	S	Large
  25 Automatic (.25 ACP)	LS	Small
  22 Hornet	LS	Small
  378 Weatherby Magnum	LS	Large
  45-70 Government/Sharps	LS	Large
  416 Rigby	LS	Large
  45-90 Winchester	LS	Large
  348 Winchester	LS	Large
  7.62 x 39mm	S	Large
  218 Bee	S	Small
  7.62×54 Rimmed (7.62 Russian)	LS	Large

* This list is not comprehensive.
