Mounting Hardware is Included

This mount fits:
Browning X-Bolt SS Action

To our knowledge, Browning has started producing their .223, .22-250 and .204 Ruger receivers with Super Short Action spacing. Before purchasing, please measure your inside hole spacing to confirm.

For the X-Bolt Short Action click here



Older model X-Bolts had front screw holes that were threaded to the top of the receiver. Newer models now have a deeper countersink. This countersink prevents the mounting screws from engaging multiple threads and can cause the holes to strip out in the receiver. We have changed the depth of the countersink on mounts made after January 2021. The date code can be found on the bottom of the mount. If the last 2 digits are 21 or higher, your mount has the deeper countersink.

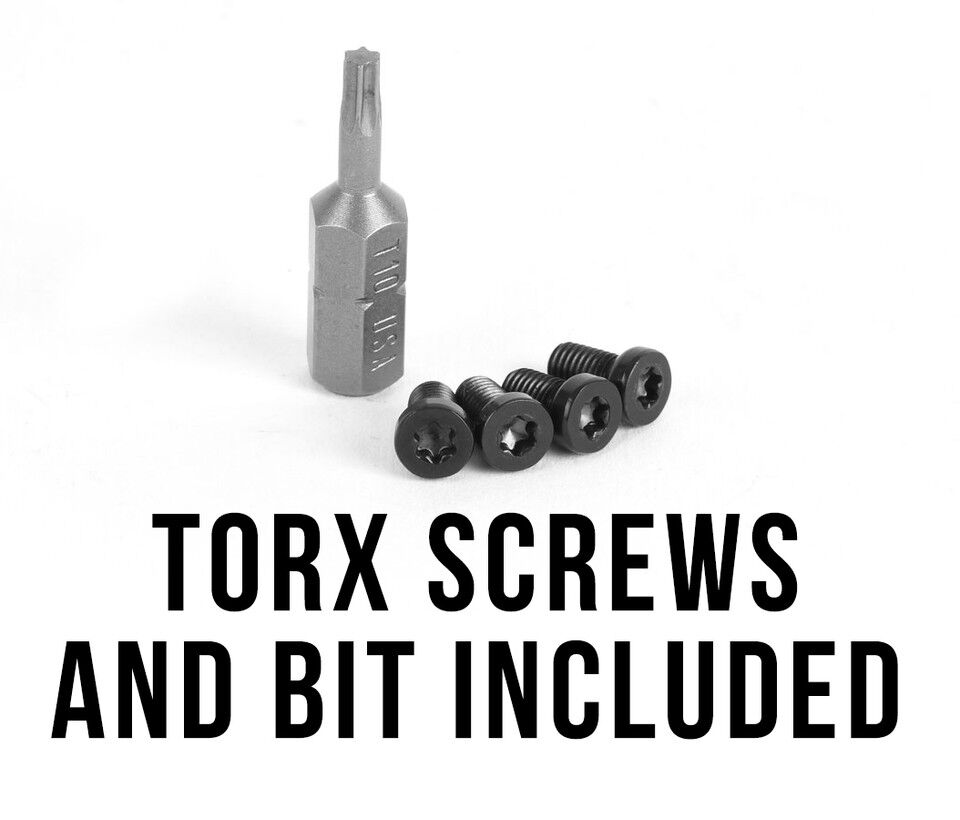

Older mounts may require longer front screws. We recommend test fitting the screws before Loctiting to check for proper engagement. If the screws only engage with one thread, please contact us and we will provide longer screws (.335” OAL). If the screws bottom out before tightening the mount, we recommend removing a bit of material from the screw. The front screws can be torqued to 10 in/lbs.

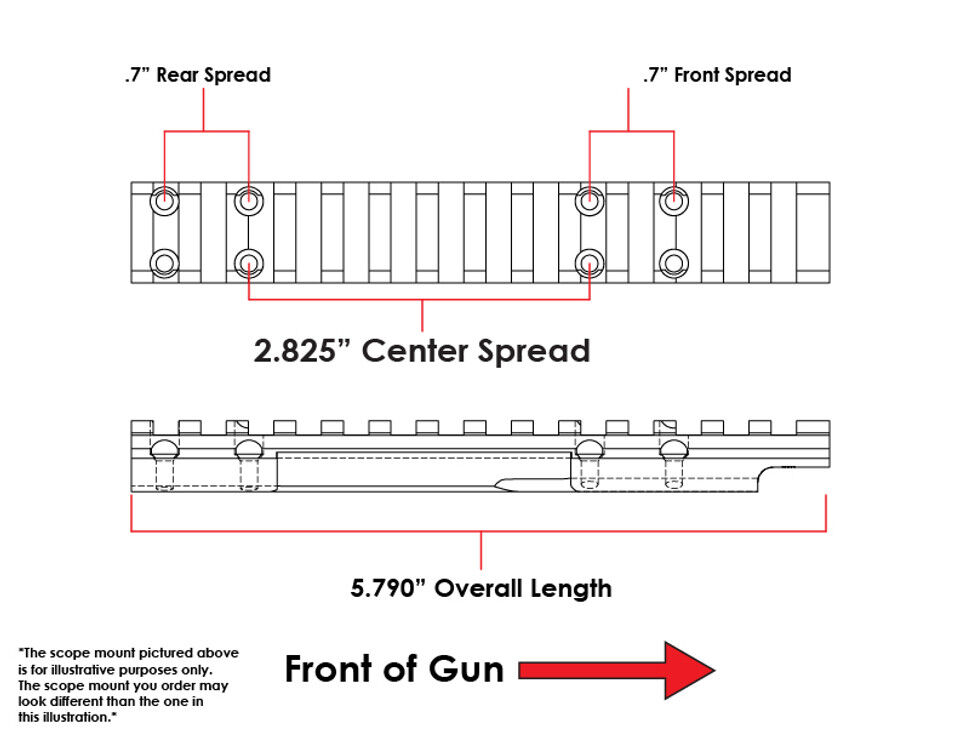

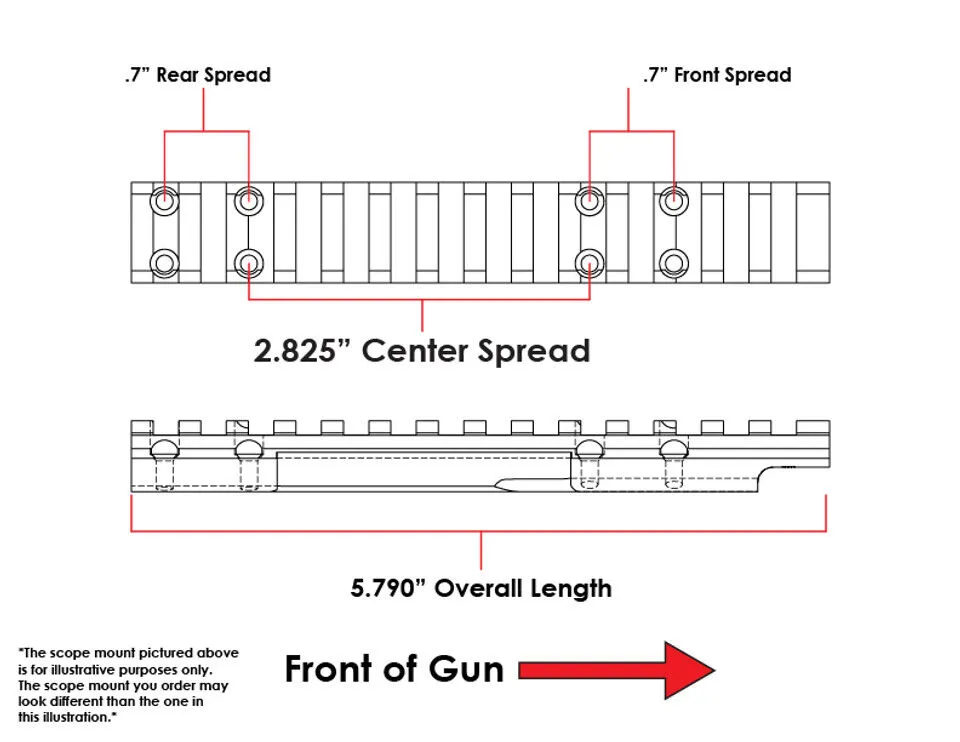

We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

This mount is a Picatinny-style base and compatible with Picatinny or Weaver scope rings.

SKU EGW81016
Model # 81016
Brand EGW
