One scope to rule them all. From dark-timber whitetails, to executing precision long-range shots on an open-country mule deer, and everything in between - there’s the lightweight, second focal plane Razor HD LHT. Stunning, High Definition optical system delivers a crystal-clear sight picture with tack-sharp resolution. Turn every second of legal shooting light into opportunity. Take to the field with confidence knowing you’ve sacrificed nothing with the Razor HD LHT.

Included in the Box:

  • Sunshade
  • Lens Covers
  • Lens Cloth
  • CR2032 battery
  • Free Custom Ballistic Strip Coupon

OPTICAL
APO System
Index-matched lenses correct color across the entire visual spectrum.
Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.
HD Lens Elements
Premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in high-definition images.
XR™ Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

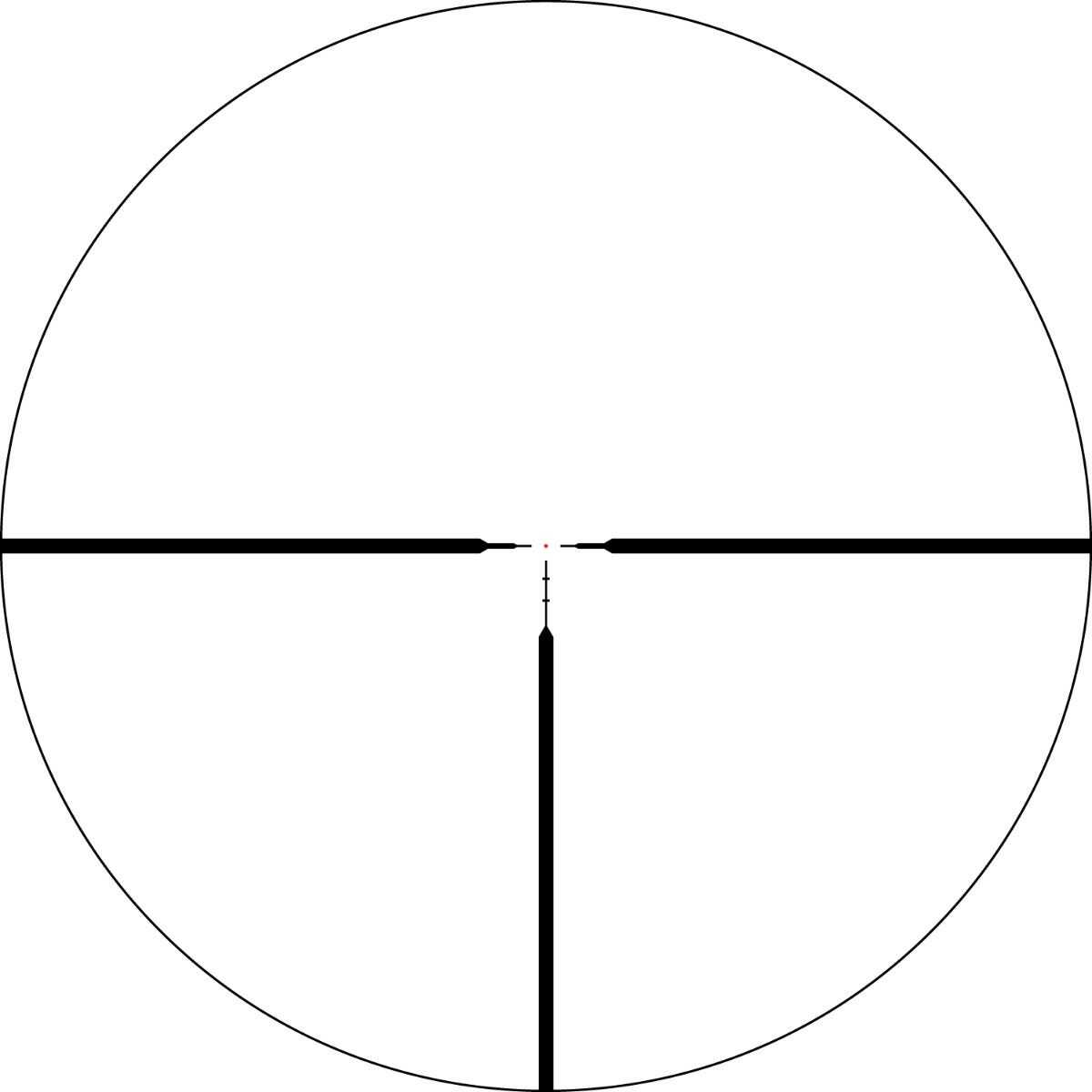

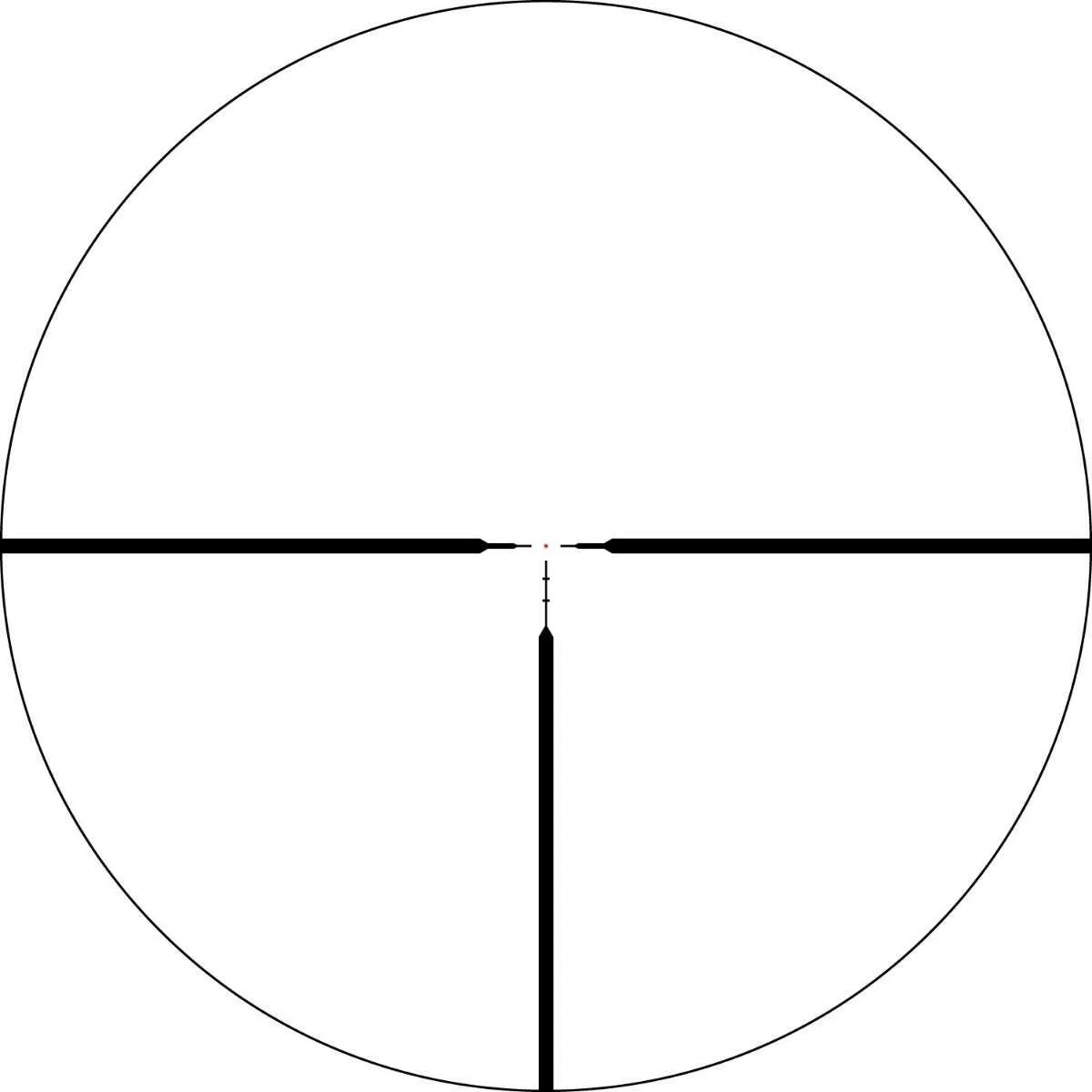

Second Focal Plane Reticle
Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center Dot
Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.

CONSTRUCTION
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
ArmorTek ®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Locking Elevation Turret
Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.
Large Diameter Capped Windage Turret
Provide fast, accurate and easily read windage adjustments. Cap provides external protection for windage turret.

CONVENIENCE
RevStop™ Zero System
Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.

Razor HD LHT 3-15x50 Dimensions (in inches)





Lengths
L1 L2 L3 L4 L5 L6
13.6 2.6 2.0 6.2 3.7 2.0
Heights
H1 H2
2.32 1.7
SKU VORRZR-31503
Model # RZR-31503
Brand Vortex
Magnification 3-15x
Tube Size 30mm
Focal Plane SFP (Second Focal Plane)
Objective Lens Diameter 50mm
Parallax Adjustment Side Focus
Parallax Setting 18m to Infinity
Turret Style Exposed
Eye Relief 97mm
Field of View 35.3-7.0ft @ 91m
Illuminated Reticle Yes
Adjustment Graduation .1 MRAD
Travel Per Rotation 6 MRAD
Max Elevation Adjustment 23 MRAD
Max Windage Adjustment 23 MRAD
Elevation Turret Style Exposed Locking
Windage Turret Style Exposed
Length 338mm
Weight 581 grams

OUR VORTEX INTERNATIONAL VIP WARRANTY IS ABOUT YOU, NOT US.

The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product. In Australia this is Extravision Australia.

Distributors and dealers in countries other than where you made your purchase may apply service charges due to different rules and regulations in that country. We recommend you make your purchases from your local distributor or dealer to ensure you get the best service should there ever be a need.

Products shipped from the USA out of the country are considered Gray Market Products and are not covered by this warranty.


The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
