The amount of resizing provided by conventional reloading dies has always been dictated by the manufacturing tolerances (SAAMI specifications) of the brass cartridge case itself.
Reloading die manufacturers have been forced to design the neck diameter of their dies small enough to accommodate the thinnest possible brass. This may be as much as .008" - .010" smaller than the maximum cartridge dimensions typically shown in most reloading manuals.
Since the majority of cases that the reloader is likely to encounter in the field are thicker than the minimum specifications that the dies were designed for, case necks are often resized excessively. It can be easily demonstrated that excessive resizing of the cartridge case quickly leads to stress distortion and concentricity problems.

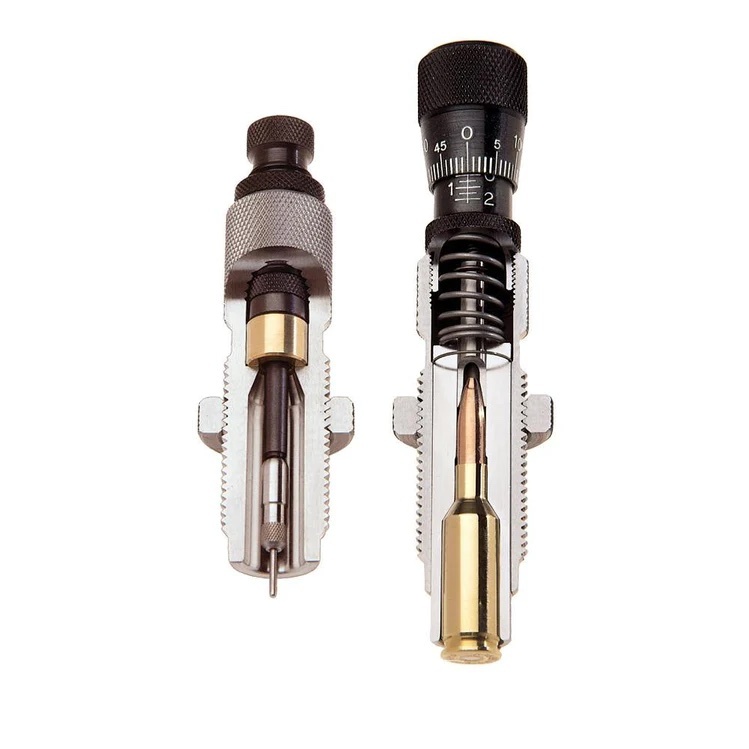

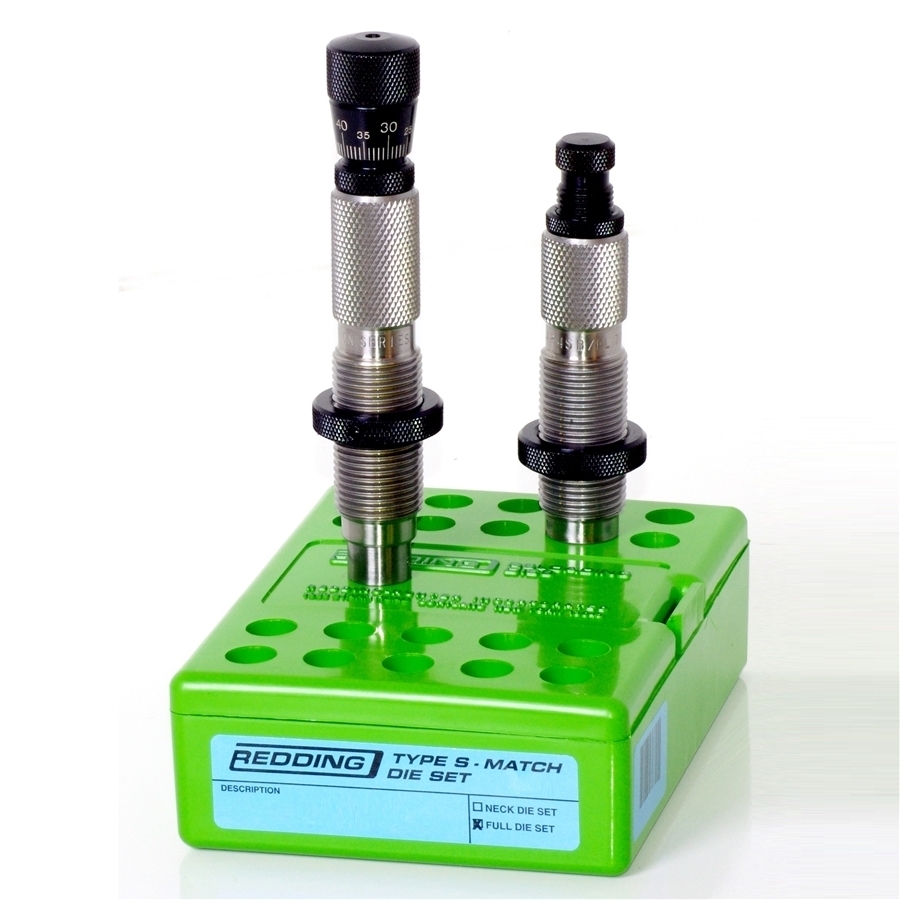

The new Type S - Bushing Style Dies offer a simple solution to this age old problem. Type S – Full Bushing Die Full length resizing while maintaining exact control of the case neck is often desirable in one operation.
All Type-S dies use an interchangeable bushing to control neck diameter and tension to an increment of 0.001”. Bushings are available in hardened steel but also are available with a TIN (Titanium Nitride) coating for even greater lubricity. This allows the handloader complete control and precision when setting the appropriate neck tension without fear of over working the brass in the case neck. These bushings are also free-floating to self- center on the case neck for a higher degree of sizing accuracy. These features provide not only an enhanced degree of control but significant improvements to consistency and accuracy of the final loaded rounds.
The adjustable decapping rod allows you to adjust the bushing position, sizing only part of the neck length when desired . Concentricity is enhanced by the ability of the bushing to self-center on the neck of the cartridge case. All Type S (except 17 and 20 Cal.) dies are supplied with both the standard size button and a decapping pin retainer for the advantages and versatility described under our Type S - Bushing Style Neck Sizing Dies. Note: By removing the bushing and all internal parts, the Type-S full bushing die may also be used as a body die.
Competition Seating Die - This patented design quickly established itself as the "state of the art" in straight line bullet seaters and beat the concentricity problems inherent in all other seating dies of this type.
Tighter manufacturing tolerances were made possible due to the details of the floating seating stem system. The bullet guide to seating stem fit is so precise that the seating stem can actually be demonstrated to "float" on a column of air. The seating stem is precision ground to exactly match the bullet diameter.
Alignment and accuracy are enhanced by the cartridge case and bullet being completely supported and aligned in a close fitting, precision ground sleeve before the bullet seating begins.
The micrometer is calibrated in .001" increments for precise seating depth and is infinitely adjustable. The micrometer also has a feature that allows you to re-set it to your favorite seating depth.
All dies are supplied without bushings.
