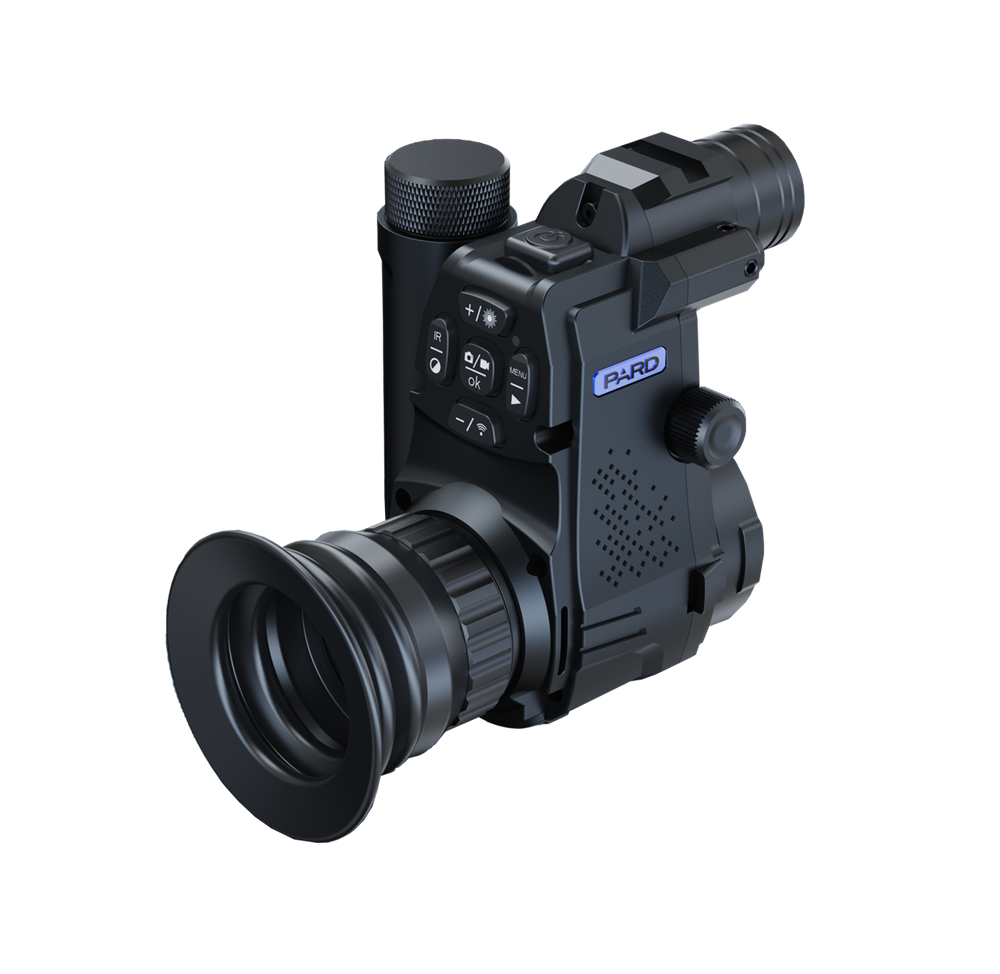

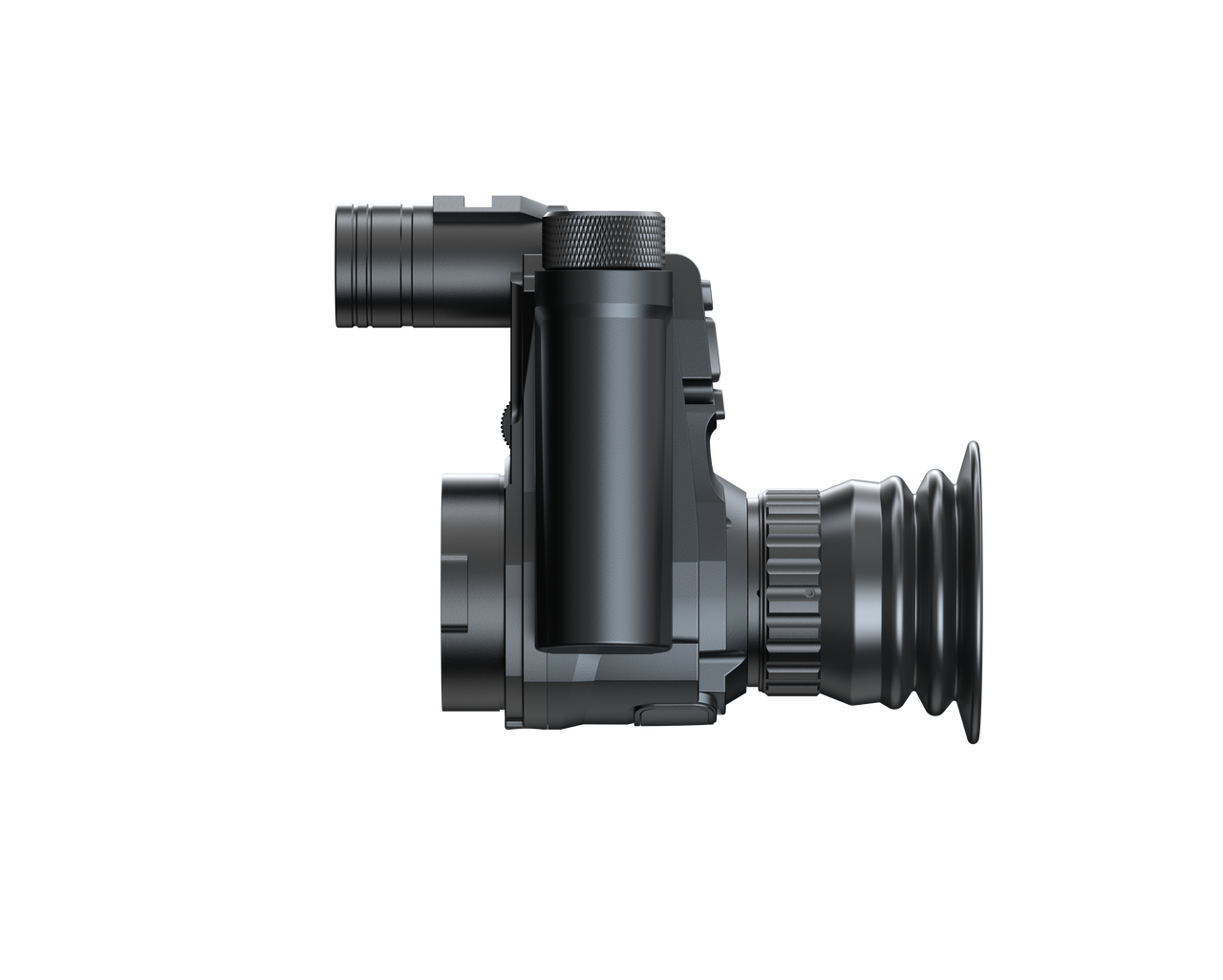

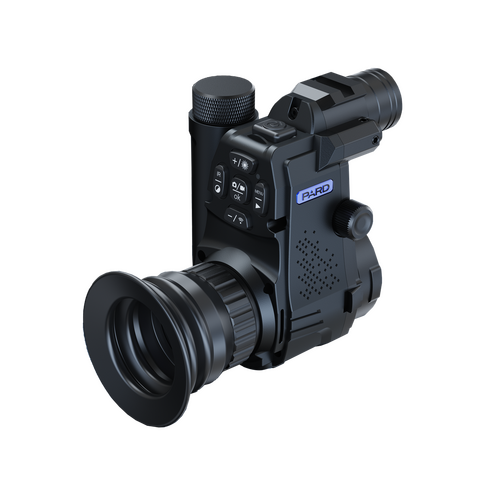

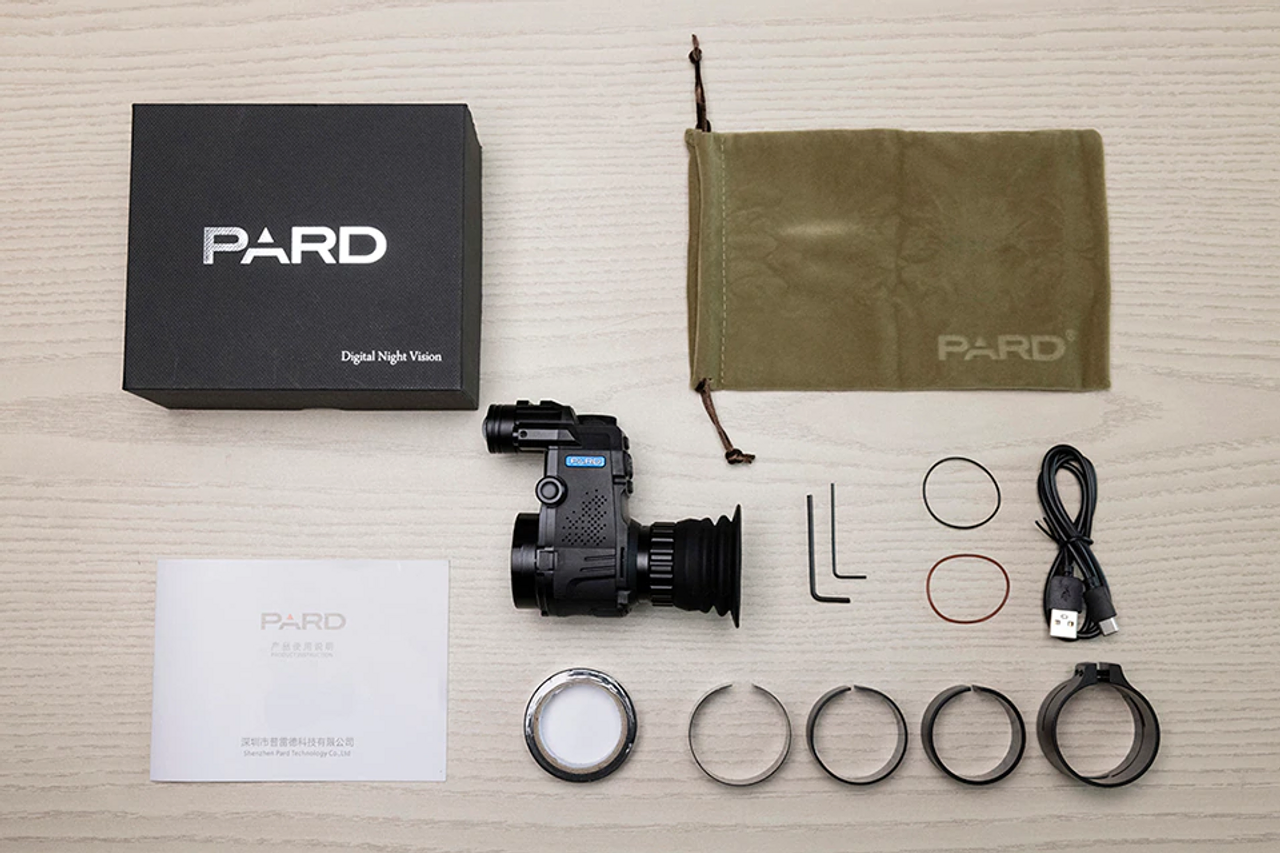

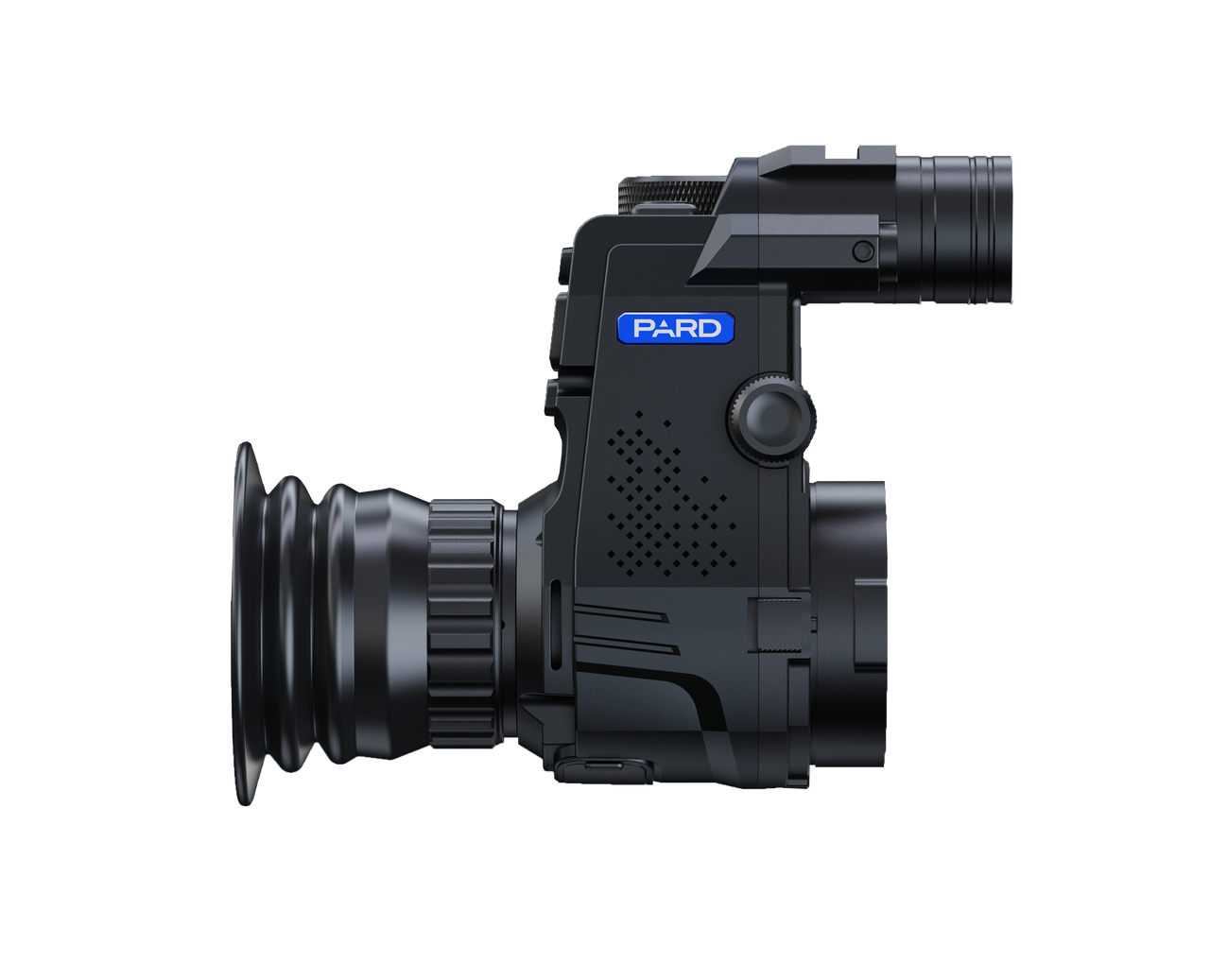

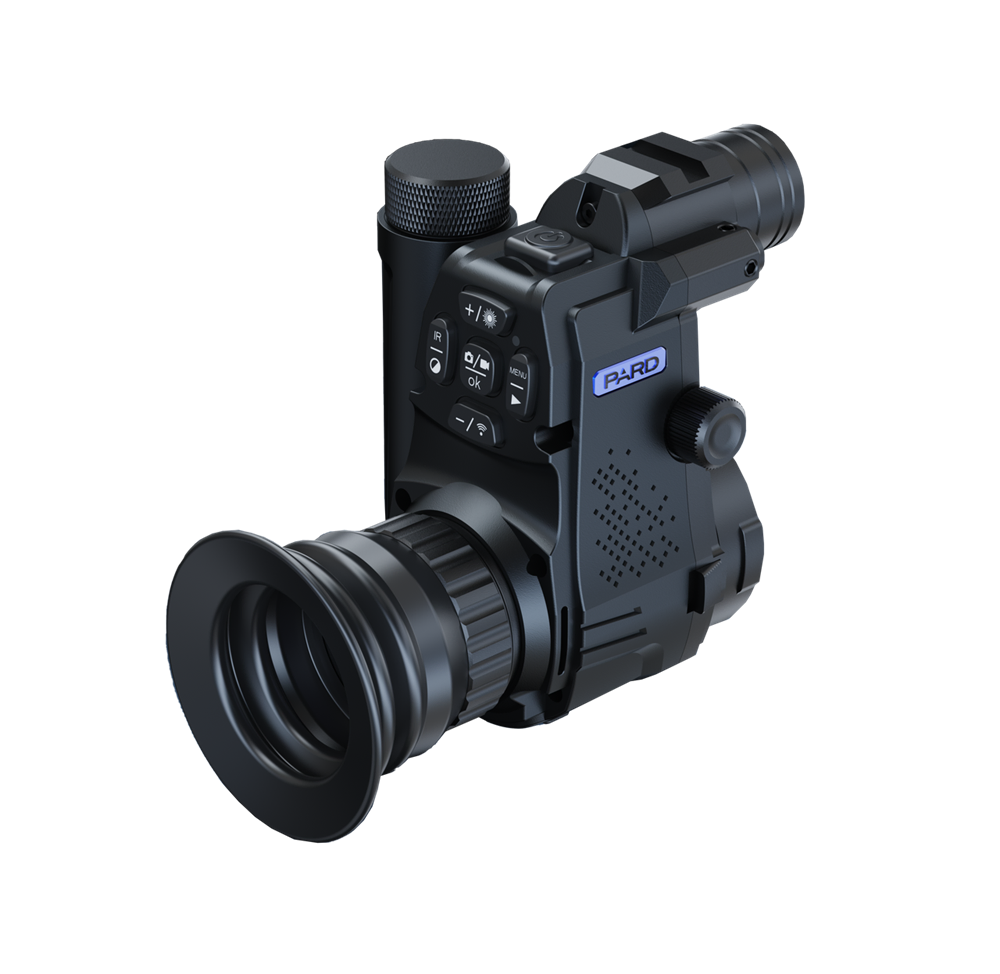

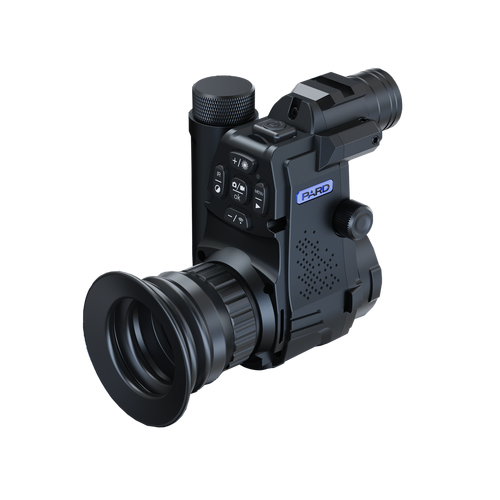

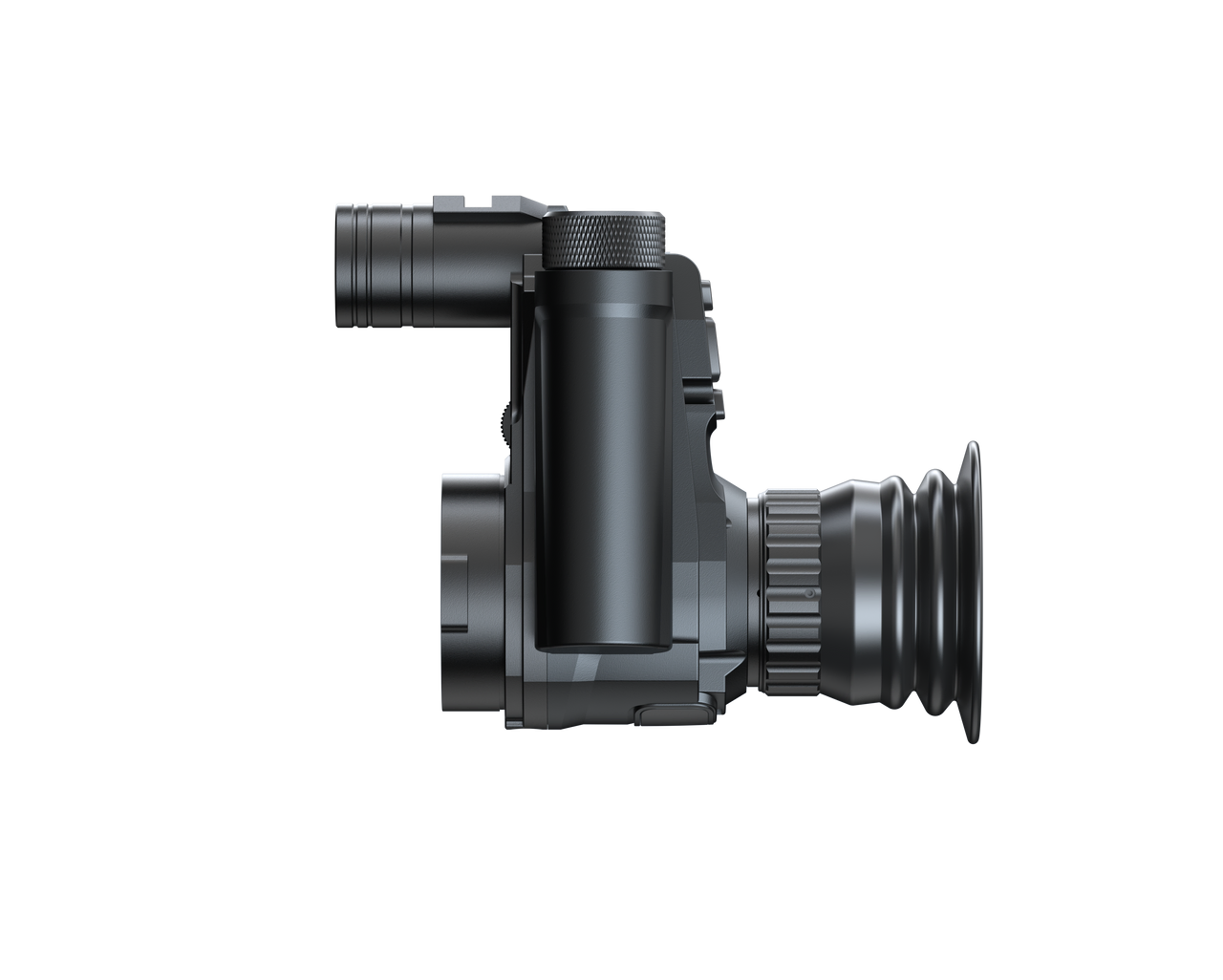

PARD NV007SP (940nm) Digital Night Vision Clip-on Attachment
Digital Night Vision Clip-On
| Stock Location | |
|---|---|
| QLD Warehouse | 0 |
Brand new to 2023 is the Pard NV007SP Rear Night Vision Add-on.
Brand new to 2023 is the Pard NV007SP Rear Night Vision Add-on.
It takes the existing PARD NV007s platform and makes multiple improvements to further performance and portability. This small and compact unit now comes with a highly sensitive 2k CMOS sensor boasting a resolution of 2560x1440 and pairs this with advancements in PARDs technology to bringing the best night time performance we have seen from a PARD Rear Night Vision Clip On unit.
With a 0.001 LUX rating and 30HZ frame rate the new PARD NV007SP is built for low light and night time use. It comes equipped with a 22.5mm objective lens and digital zoom of 4x. The display within the NV007SP is OLED based and has a 1024x768 resolution with either a colour or black and white providing a crisp and sharp image to make sure you can assess your quarry and environment clearly before taking a shot
Much like we saw on the PARD NV007s the 007SP series features the same improved attachment system allowing for rapid and simple attachment to your existing day scope, opening the possibilities for your existing scope dramatically. Additionally being shock resistant up to a .308 caliber expands the range of firearms suitable for the Pard NV007SP Night Vision Clip On.
Built to last the PARD NV007SP is able to survive the toughest of conditions is key; this is why the Pard NV007SP Rear Night Vision Clip On features an IP67 rating making the unit dustproof and waterproof (up to 1m for 30 Mins).
Being portable is key for a scope attachment this is why the new design takes into account overall size and weight making sure your hunts are not hindered. A useful new feature on the Pard NV007SP Rar Night Vision Clip On on is the recoil-activated video capture allowing you to focus on your shot and not miss any exciting moments.
The on board IR illuminator has a 5 WATT 850nm or 940nm IR and has 3 levels of illumination with an accepted performance distance of 350m.
The standard 18650 3.7v battery provided with the unit will get the Optic working and useable for up to 8 hours.
Key Features;
- 2560*1440 (2k) optical sensor
- 22.5mm objective lens, 4.0x base magnification
- 850nm / 940 nm
- Optional IR illuminator (5 watt)
- Mounts to rear of your day scope with adapter (45mm included, suits any scope eye piece smaller than 45mm)
- 48mm Adapter available but must be purchased seperately
- 1x 18650 removeable battery (+8hrs operating time)
- Micro SD storage for media recording,
- WiFi connectivity
| Self-activated recording | Yes | |
| Auto recording | Yes | |
| Loop recording | Yes | |
| Time stamp | Yes | |
| Record audio | Yes | |
PARD NV Product Specifications;
|
MODEL |
NV007V |
NV007S |
NV007SP |
NV008S (LRF) |
|
Optical Sensor |
1920 x 1080 |
1920 x 1080 |
2560*1440 |
1920 x 1080 |
|
Objective lens |
16mm |
16mm |
22.5mm |
50mm (70mm) |
|
Magnification, x |
4x - 14x | 4x - 14x | 4x - 14x |
4.5x - 9x (6.5x - 13x) |
|
Field of view (HxV), degrees / m @ 100mtrs |
- | - | - | - |
|
Detection range, m |
300 (IR range) |
300 (IR range) | 350 (IR range) |
350 (IR range) |
|
Sensor |
||||
|
Type |
- |
- | CMOS |
- |
|
Resolution, pixels |
1920 x 1080 | 1920 x 1080 | 2560*1440 |
1920 x 1080 |
|
Frame rate, Hz |
- | - | 30 | - |
|
Optics |
|
|
|
|
|
Objective lens |
16mm | 16mm | 22.5mm | 50mm (70mm) |
|
Magnification, x |
4x - 14x | 4x - 14x | 4x - 14x |
4.5x - 9x (6.5x - 13x) |
|
Field of view (HxV), degrees / m @ 100mtrs |
- | - | N/A | - |
|
IR Illuminator |
||||
|
IR Wave length |
850nm or 940nm | 850nm or 940nm | 850nm or 940nm | 850nnm |
|
IR Power, w |
5 | 5 | 5 | 5 |
|
IR Detecting distance, m |
300 | 300 | 350 | 350 |
|
Display |
|
|
||
|
Resolution, pixels |
1024 x 768 OLED | 1024 x 768 OLED | 1024 x 768 OLED | 1024 x 768 OLED |
|
Colour Palettes |
Day / Night mode | Day / Night mode | Day / Night mode | Day / Night mode |
|
Range Performance |
|
|
||
|
Detection range (person), m |
300 (IR range) |
300 (IR range) | 350 (IR range) |
350 (IR range) |
|
Laser Rangefinder |
|
(LRF optional) |
||
|
Safety class for laser equipment according to IEC 60825-1:2014 |
- |
- |
- |
- |
|
Wavelength, nm |
- |
- |
- |
- |
|
Max. measuring range, m |
- |
- |
1100 |
1200 |
|
Measurement accuracy, m |
- |
- |
1 |
1 |
|
Min. Measuring Range, m |
- |
- |
3.5 |
3.5 |
|
Reticle |
|
|
|
|
|
Picture in Picture |
- |
- |
N/A |
2x upto 18x (upto 26x) |
|
Number of preloaded reticles |
- |
- |
N/A |
|
|
Number of Zero Profiles available |
- |
- |
N/A |
|
|
Wireless Connection |
WiFi |
WiFi |
WiFi |
WiFi |
|
Recording |
Photo & Video |
Photo & Video |
Photo & Video |
Photo & Video |
|
Environmental Characteristics |
|
|
||
|
Degree of protection, IP code (IEC60529) |
IP67 | IP67 | IP67 | IP67 |
|
Power Supply |
|
|||
|
Output voltage, V |
3.7 | 3.7 | 3.7 | 3.7 |
|
Battery type |
18650 Li-ion | 18650 Li-ion | 18650 Li-ion | 18650 Li-ion |
|
Operating time on battery pack (at t=22°C), h * |
>6 | >8 | >8 | >6 |
|
External power supply, V |
- | - | - | - |
|
Connections and Compatibilities |
|
|
||
|
Max. recoil power on firearm |
6000 joules | 6000 joules | 6000 joules | 6000 joules |
|
Mounting brackets on firearm |
45/48mm scope adapter | 45/48mm scope adapter | 45/48mm scope adapter | picatinny rail mount |
|
Weight & Size |
|
|
||
|
Dimensions, mm |
106 x 97 x 47 | 102 x 75 x 118 | 102 x 75 x 118 | 182 x 71 x 57 |
|
Weight, kg |
0.25 |
0.27 | 0.27 |
0.44 (0.45) |
|
Warranty |
2 years |
2 years | 2 years |
2 years |
|
Trade Data |
|
|
||
|
SKU (Model #) |
NV007V | NV007S | NV007SP | NV008S (LRF) |
| Model | NV007SP/NV007SP-LRF | |
| Classification | Night Vision(clip-on) | |
| Sensor | ||
| Resolution(px) | 2560*1440 | |
| Sensitivity(Lux) | 0.001 | |
| Frame rate(fps) | 30 | |
| Optics | ||
| Objective lens(mm) | 22.5 | |
| Optical magnification(x) | 4 | |
| Digital zoom(x) | 1-3.5 | |
| Continuous digital zoom(x) | 4-14 | |
| Field of view (H×V) | Horizontal | 22° |
| Vertical | 12° | |
| Diagonal | 25° | |
| Eye relief(mm) | 25 | |
| Diopter adjustment | ±5D | |
| Focus range | 3cm-∞ | |
| Adaptor diameter(mm) | 45/48 | |
| IR Illuminator | ||
| IR type | VCSEL | |
| IR power(w) | 5 | |
| IR illuminating level | 3 Levels | |
| IR distance | 350m/383yds | |
| IR wavelength(nm) | 850/940 | |
| Display | ||
| Type | OLED | |
| Resolution(px) | 1024*768 | |
| Color mode | Color/Black&white | |
| Photo / Video | ||
| Photo resolution(px) | 2592*1944 | |
| Photo format | JPG | |
| Video resolution(px) | 1920*1080 | |
| Video format | MP4 | |
| Storage | TF card(128GB MAX) | |
| Main Function | ||
| LRF detection range | 1097m/1200yards | |
| Range unit selection | meter/yard | |
| Red dot | Optional | |
| Self-activated recording | Yes | |
| Auto recording | Yes | |
| Loop recording | Yes | |
| Time stamp | Yes | |
| Record audio | Yes | |
| Beep sound | Yes | |
| Exposure | Yes | |
| Interfaces | ||
| USB Type-C | Yes | |
| HDMI output | Yes | |
| Connections | ||
| WiFi | Yes | |
| Supported Apps | PardVision | |
| Power Supply | ||
| Battery type | 18650 Li-ion Battery | |
| Output voltage(V) | 3.7 | |
| Operating time(h,max) | 8 | |
| External power supply(V) | USB Type-C | |
| Environmental Characteristic | ||
| Degree of protection | IP67 | |
| Operating temp | -25℃ ~40℃/-13℉~104℉ | |
| Recoil power(J) | 6000 | |
| Material | ||
| Housing | AL6061 & Plastic | |
| Objective lens | Glass | |
| Measurement | ||
| Product dimension(L x W x H, mm) | 105*120*71/105*134*71 | |
| N.W/pcs(with/without battery, g) | 335/290 | 355/310 | |
| SKU | PARNV007SP-940 |
| Model # | NV007SP-940 |
| Brand | Pard |
| Battery | 18650 |
| Weight | 270 grams |
