The HELIA series impresses with uncompromising focus on the real essentials: functionality, reliability, handling and aesthetics. The perfect tool for hunting.

  • Real compact driven hunt optics with an ultra-wide field of view reaching 42 m/100 m
  • Powerful optics system with exceptional edge sharpness
  • True 1 x magnification for irritation-free viewing with both eyes
  • Extra-bright day/night illuminated reticle with intelligent automatic switch-off

2nd focal plane

2nd focal plane

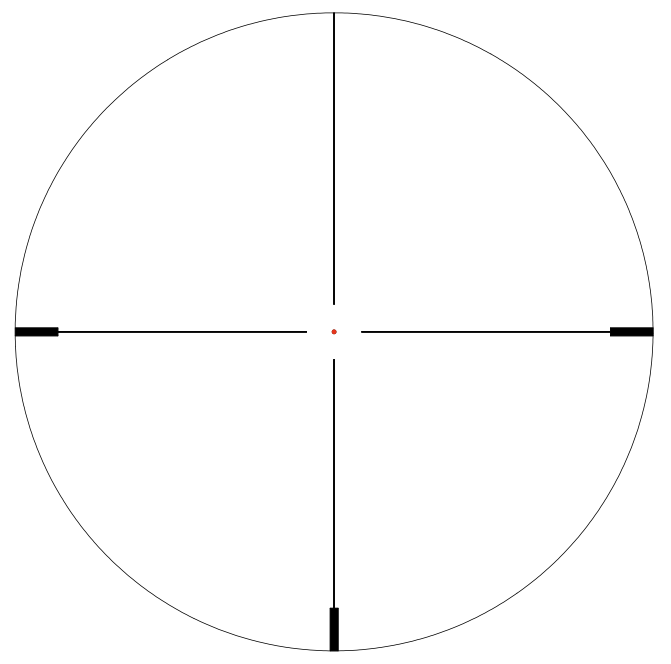

When the magnification is changed, the reticle remains the same size – although the size of the image changes, the size of the reticle does not. The subtensions change with the magnification.

Main tube 30 mm

Main tube 30 mm

The main tube has a diameter of 30 mm which is the standard for hunting scopes.

Automaticlight

Automaticlight

The automaticlight function (tilt sensor) detects whether or not the rifle scope is in a shooting position and transmits this information immediately to the illumination unit. This unit automatically switches the illuminated reticle on or off when not in use, in order to save valuable energy.

SR-Rail (optional)

SR-Rail (optional)

The SR rail (Swarovski rail) provides since several years the most innovative riflescope mounting option. The mounting rail grips the upper part of the mount with it’s teeth and guarantees complete shooting stability. Through this technique, the scope can also quickly and easily be mounted to different rifles and has established itself as a standard mounting rail in the market.

SKU KAHH1524iSWAR
Brand Kahles
Magnification 1-5x
Tube Size 30mm
Focal Plane SFP (Second Focal Plane)
Objective Lens Diameter 24mm
Parallax Adjustment Fixed
Parallax Setting 100m
Turret Style Capped
Eye Relief 95mm
Field of View 42.4 - 8.1 m/100 m
Illuminated Reticle Yes
Adjustment Graduation .1 MRAD
Max Elevation Adjustment 25 MRAD
Max Windage Adjustment 25 MRAD
Elevation Turret Style Capped
Windage Turret Style Capped
Length 278mm
Weight 475 grams
