EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

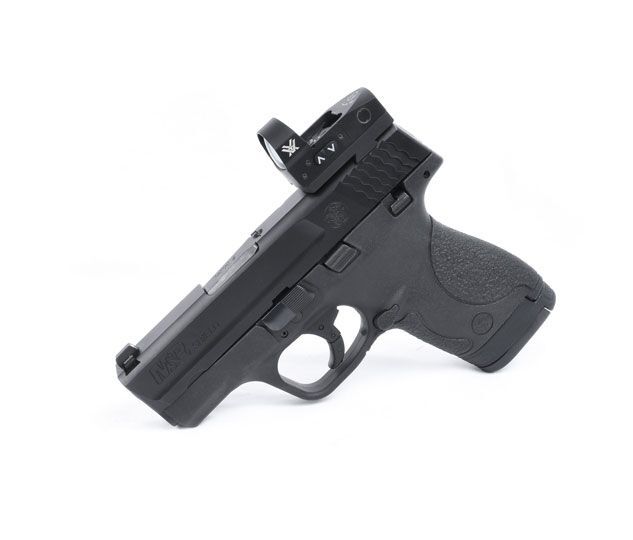

EGW handgun mounts allow you to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red dot to your favourite handgun utilising the existing dovetail mount. These one piece HD mounts allow installation on some of the most popular handguns in Australia.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Minor modification may be neccessary for Rock Islands. EGW's products should be installed and checked by a qualified and competent gunsmith.

This mount will fit:
Smith & Wesson M&P Full Size
Smith & Wesson M&P 2.0 Full Size
Smith & Wesson M&P 22 Full Size
Smith & Wesson M&P Compact
Smith & Wesson M&P 2.0 Compact
Smith & Wesson SD9VE
Smith & Wesson SD40VE
Smith & Wesson M&P Shield

This mount does not fit:
Smith & Wesson M&P C.O.R.E Series (Already Optics Ready)
Smith & Wesson M&P Shield EZ .380
Smith & Wesson M&P Shield EZ 9mm
Smith & Wesson M&P .22 Compact
Smith & Wesson SW9VE
Smith & Wesson SW40VE

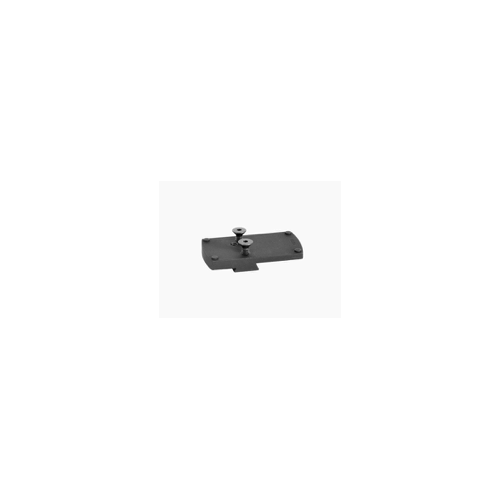

The hole for the set screw on this mount is drilled off-center intentionally. This is to allow the set screw to be tightened against the bottom of the dovetail cut in the slide. This creates an upward force on the dovetail of the mount. If the hole were cut in the center of the dovetail, the set screw would fall through the hole cut in the center of the slide which would render the set screw useless.

Smith and Wesson's rear sight dovetails are known to vary in dimensions. Our sights are made to the same tolerances. Some users may have trouble installing our plate on their slide due to the varying tolerances in your slides. Please keep this in mind when ordering. Our return policy does allow for returns of unused and undamaged parts. These mounts should be installed and checked by a qualified gunsmith. No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-32 Set Screw

Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

*All ADE mounts require 6-32 x 3/8" screws.
