EGW red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

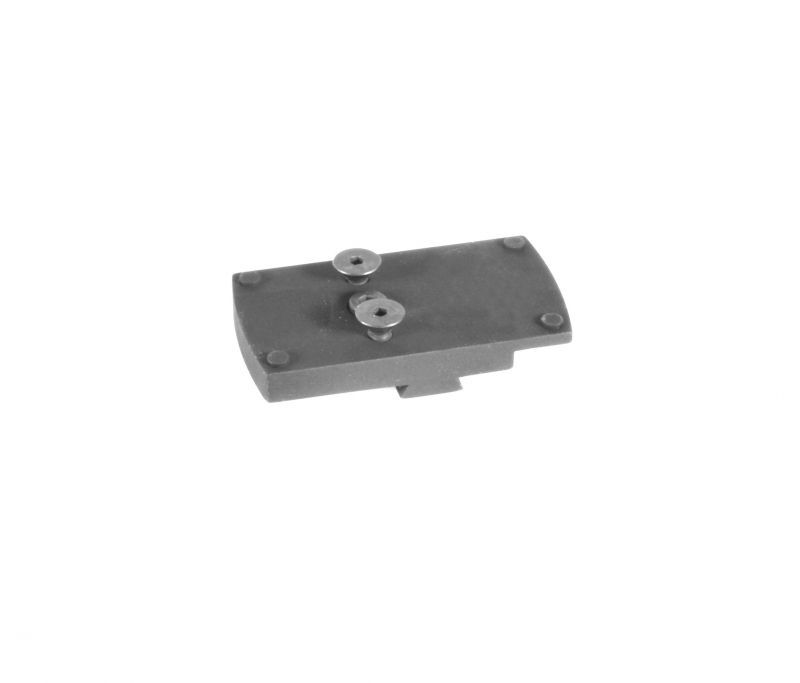

EGW handgun mounts allow you to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red dot to your favourite handgun utilising the existing dovetail mount. These one piece HD mounts allow installation on some of the most popular handguns in Australia.

Simply remove the rear sight on your gun and replace it with our mount in order to mount your  Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. No alterations are required. You can take our mount off and replace your rear sight at any time. Mounting hardware included. Minor modification may be neccessary for Rock Islands. EGW's products should be installed and checked by a qualified and competent gunsmith.

This sight fits (including but not limited to):
STI Edge (either this sight or LPA)
Les Baer 1911 (adjustable rear sights)
Colt Gold Cup Trophy with Bomar Rear Sight Cut
Colt Gold Cup National Match .45acp
Colt Gold Cup National Match 9mm
Springfield TRP Operator
Dan Wesson Bruin (may require fitting due to the Clark cut on the top of the slide)

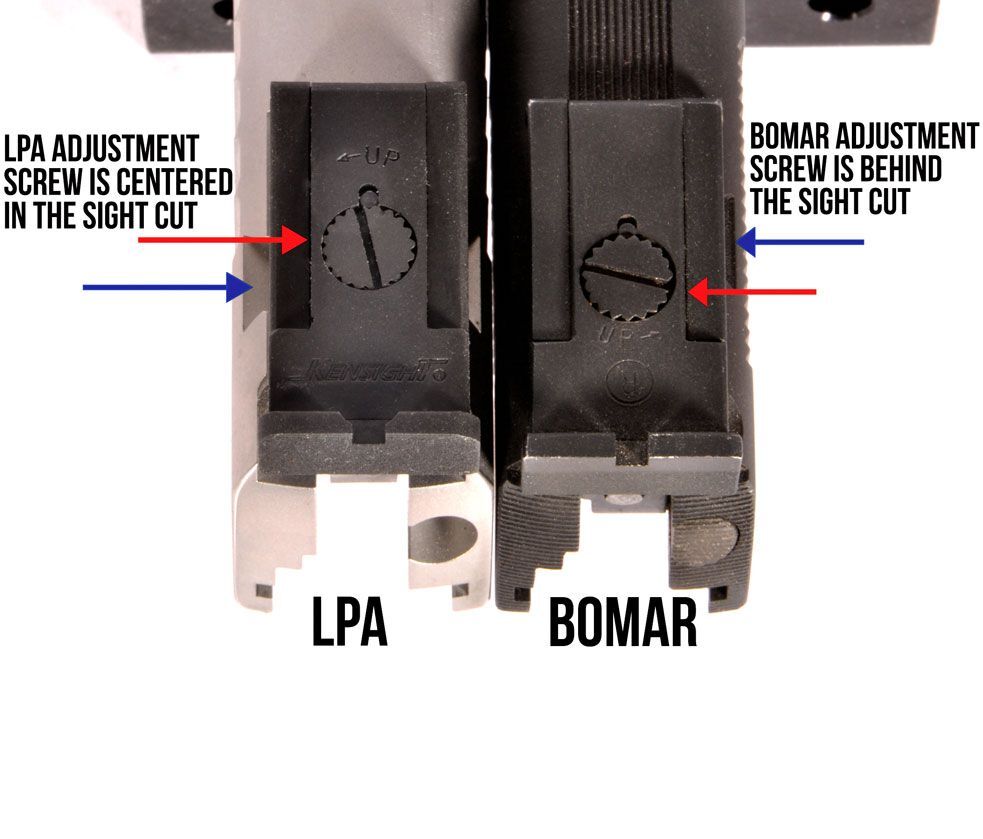

Please verify the location of the elevation screw in your slide. The LPA has the elevation screw in the center of the dovetail cut. The Bomar has the elevation screw behind the dovetail cut.

Please See Our Common 1911 Dovetail Chart If You Are Not Sure Which Cut You Have.

Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
(1) 6-48 Torx Head Screw

Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire 1, 2, 3, 4
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot

The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.

*All ADE mounts require 6-32 x 3/8" screws.
